Profile Box
Segibiz’s aluminum profile boxes have classy appearance and can be customized for various purposes. You can open and close the box with only two bolts, which can be used for various purposes and customized as terminal box or push button box. The maximum length is 4M and a lot of options such as perforation and laser marking are open to you in make-to-order.
Type of Profile Box

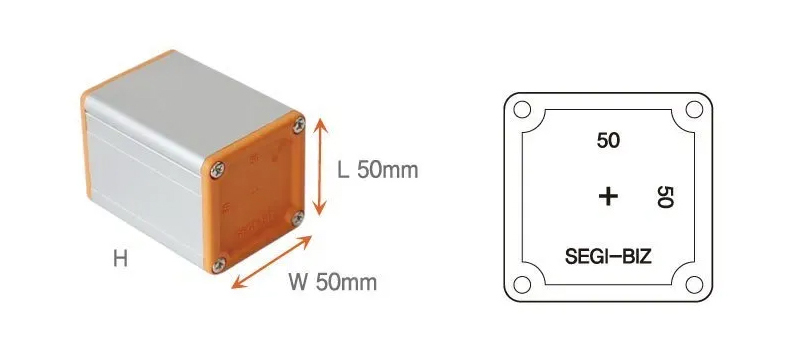

Profile Box M Type
Standard(mm)
50(W)mm X 50(L) X H
Thickness
1.2T

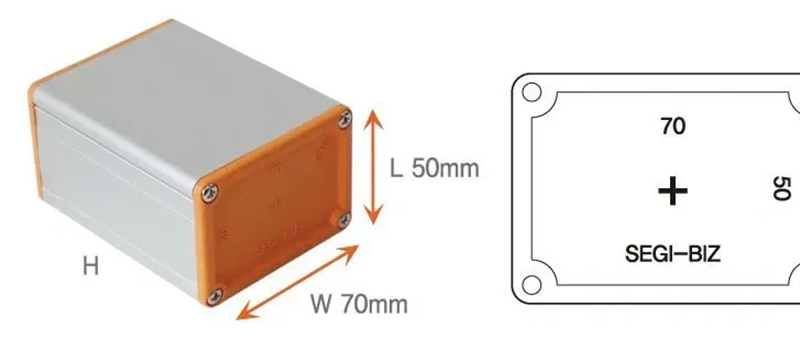

Profile Box A Type
Standard(mm)
70(W)mm X 50(L) X H
Thickness
1.2T

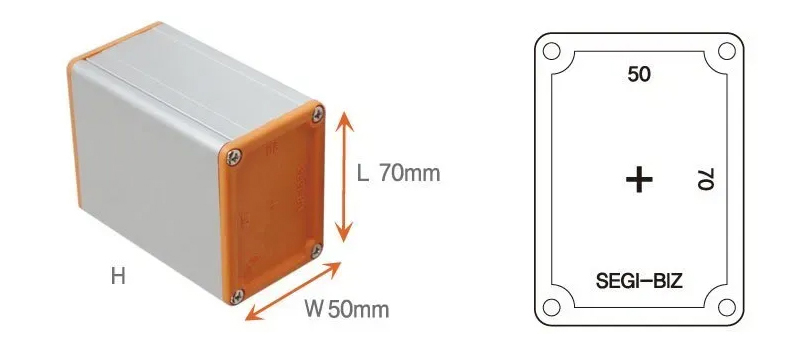

Profile Box MA Type
Standard(mm)
50(W)mm X 70(L) X H
Thickness
1.2T

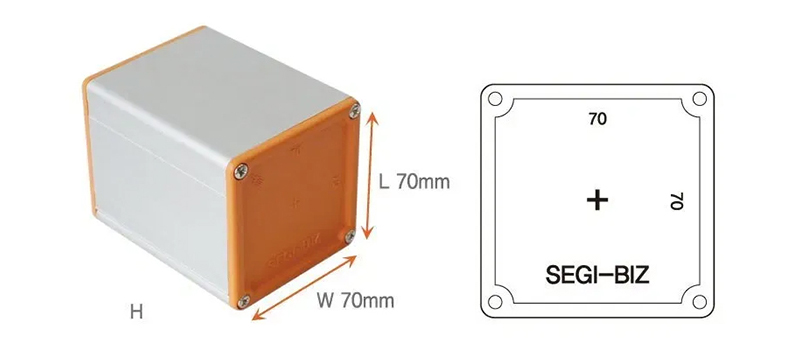

Profile Box B Type
Standard(mm)
70(W)mm X 70(L) X H
Thickness
1.4T

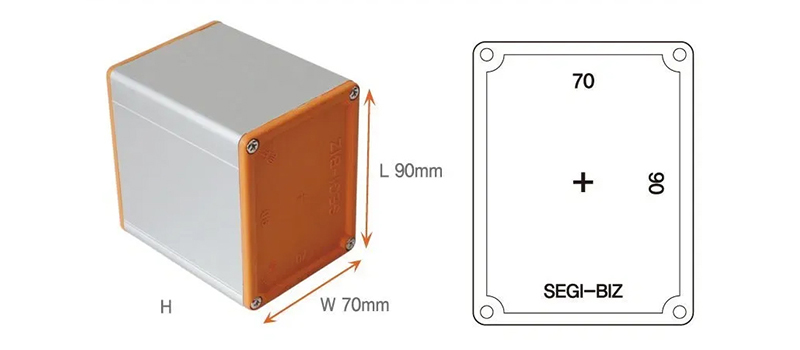

Profile Box C Type
Standard(mm)
70(W)mm X 90(L) X H
Thickness
1.4T

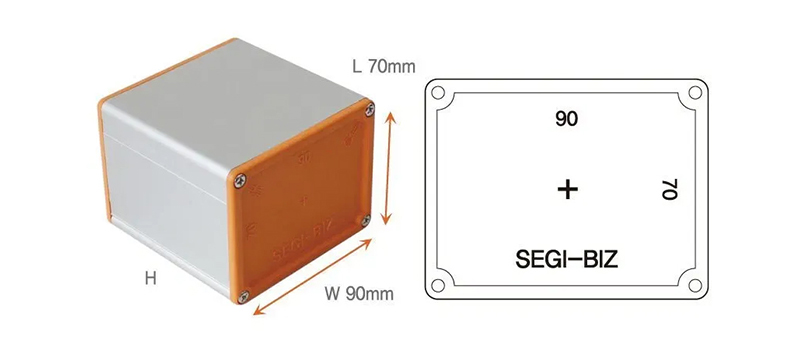

Profile Box D Type
Standard(mm)
90(W)mm X 70(L) X H
Thickness
1.4T

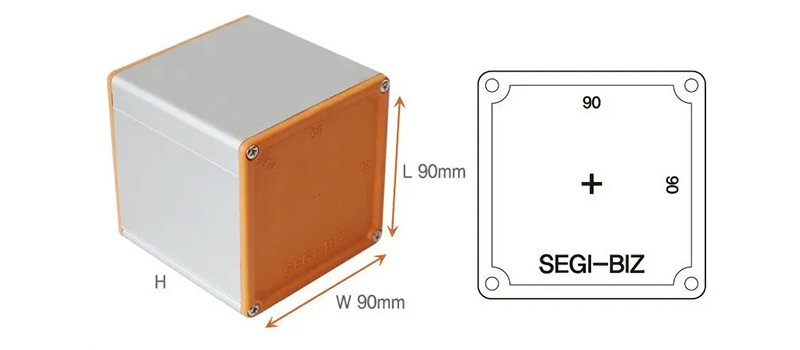

Profile Box E Type
Standard(mm)
90(W)mm X 90(L) X H
Thickness
1.4T

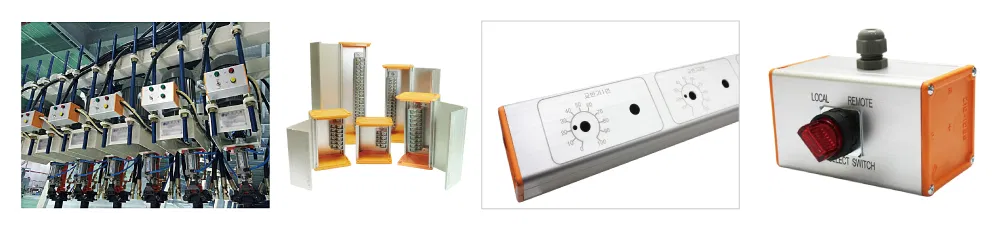

Profile Box Usage
* Comparing with real Product dimension, there may be minute gap.
