Profile Box Sloped Type
You can open and close the box with only two bolts, which can be used for various purposes and customized as terminal box or push button box. The maximum length is 4M and a lot of options such as perforation and laser marking are open to you in make-to-order.
Profile Box Sloped Type

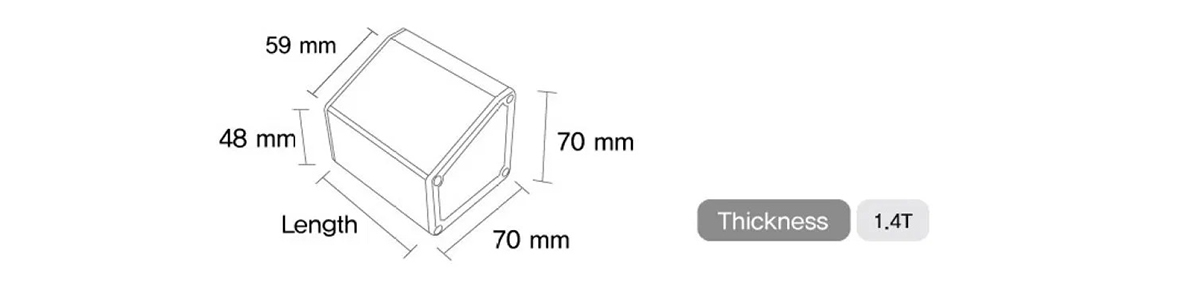

Product Size
Profile Box

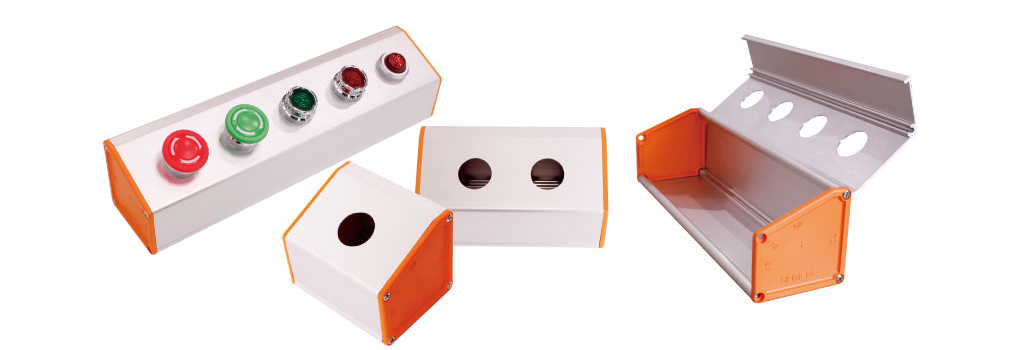

Push Button Boxes Sloped Type
Specification
The maximum length is 4M and a lot of options such as perforation and laser marking are open to you in make-to-order.
Push Button Boxes sloped type Model
Model SG-MP-2201
Hole
1
Φ
22
Length
90
Model SG-MP-2501
Hole
1
Φ
25
Length
90
Model SG-MP-3001
Hole
1
Φ
30
Length
90
Model SG-MP-2202
Hole
2
Φ
22
Length
145
Model SG-MP-2502
Hole
2
Φ
25
Length
145
Model SG-MP-3002
Hole
2
Φ
30
Length
145
Model SG-MP-2203
Hole
3
Φ
22
Length
200
Model SG-MP-2503
Hole
3
Φ
25
Length
200
Model SG-MP-3003
Hole
3
Φ
30
Length
200
Model SG-MP-2204
Hole
4
Φ
22
Length
255
Model SG-MP-2504
Hole
4
Φ
25
Length
255
Model SG-MP-3004
Hole
4
Φ
30
Length
255
Model SG-MP-2205
Hole
5
Φ
22
Length
310
Model SG-MP-2505
Hole
5
Φ
25
Length
310
Model SG-MP-3005
Hole
5
Φ
30
Length
310
Model SG-MP-2206
Hole
6
Φ
30
Length
365
Model SG-MP-2506
Hole
6
Φ
25
Length
365
Model SG-MP-3006
Hole
6
Φ
30
Length
365
Profile Box Push Button Boxes sloped type

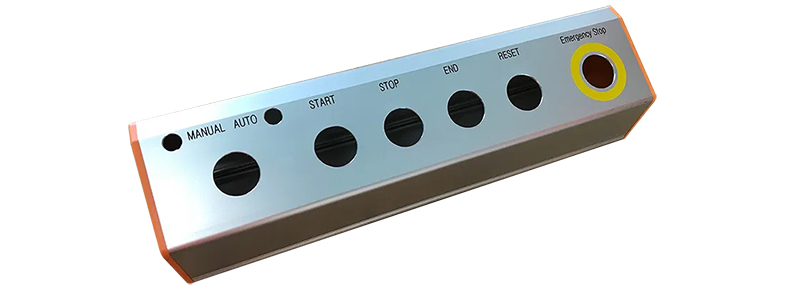

Usage
