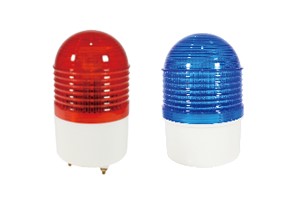

Bulb lighting/flashing compact beacon
Specification
Incandescent bulb type small beacon
Easy maintenance due to relatively simple internal structure with lighting/flashing indicator
Suitable for device malfunction, material supply and interruption signals, and signal transmission indication of automation lines
Material Lens
GPPS
Body
ABS
Reflector
PC
Ambient temperature
-25℃ ~ +50℃

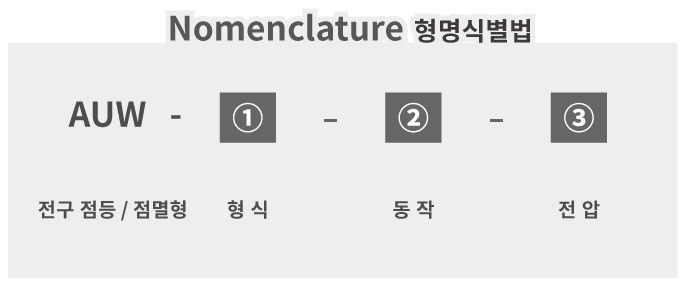

Product Information
Format
80: 80Φ | 100: 100Φ
Action
B: lit | BF: flashing
Voltage
110: AC 110V | 220: AC 220V | 12: DC 12V | 24: DC 24V
Icon description and product configuration
Icon Description
Light Source
Incandescent light bulb
LED lamp
Xenon lamp
Action
Steady type
Flashing
Rotary
Strobe (flash) type
Sound
Maximum volume
Buzzer
Siren
Melody
Voice
Option
Magnet attachment type
High brightness
Protection net
Bulb lit/flashing beacon
Φ80
Steady Type
AUW-80B
Flashing
AUW-80BF
Φ100
Steady Type
AUW-100B
Flashing
AUW-100BF

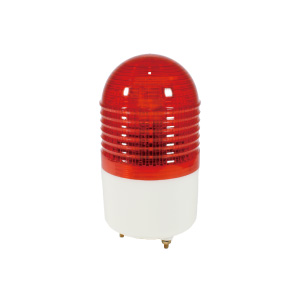

AUW-80B / AUW-80BF
80mm outer diameter small bulb lighting/flashing warning light
Color
Red (R) Yellow (Y) Green (G) Blue (B)
| Model | Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|---|
| AUW-80B | AC 110V | 0.05 (A) | 110V 10W | 200 g |
| AC 220V | 0.03 (A) | 220V 10W | 200 g | |
| DC 12V | 0.9 (A) | 12V 10W | 200 g | |
| DC 24V | 0.5 (A) | 24V 10W | 200 g | |
| AUW-80BF | AC 110V | 0.5 (A) | 110V 10W | 209 g |
| AC 220V | 0.03 (A) | 220V 10W | 209 g | |
| DC 12V | 0.9 (A) | 12V 10W | 209 g | |
| DC 24V | 0.5 (A) | 24V 10W | 209 g | |

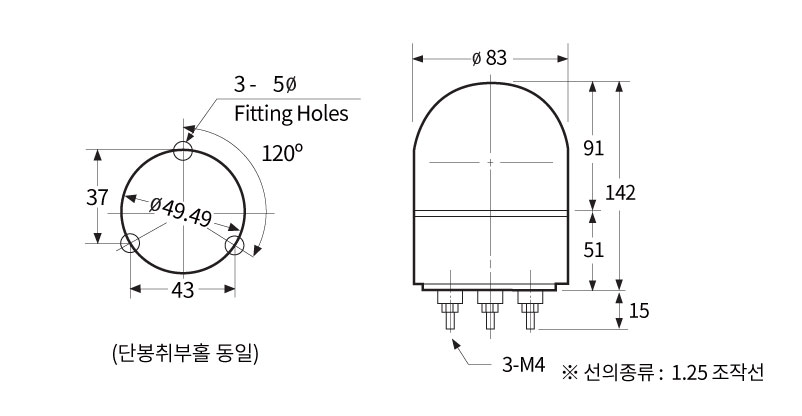

Product outline drawing

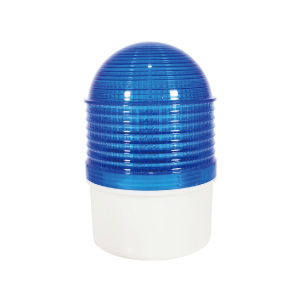

AUW-100B / AUW-100BF
100mm outer diameter small bulb lighting/flashing warning light
Color
Red (R) Yellow (Y) Green (G) Blue (B)
| Model | Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|---|
| AUW-100B | AC 110V | 0.05 (A) | 110V 10W | 327 g |
| AC 220V | 0.03 (A) | 220V 10W | 327 g | |
| DC 12V | 0.9 (A) | 12V 10W | 327 g | |
| DC 24V | 0.5 (A) | 24V 10W | 327 g | |
| AUW-100BF | AC 110V | 0.5 (A) | 110V 10W | 336 g |
| AC 220V | 0.03 (A) | 220V 10W | 336 g | |
| DC 12V | 0.9 (A) | 12V 10W | 336 g | |
| DC 24V | 0.5 (A) | 24V 10W | 336 g | |

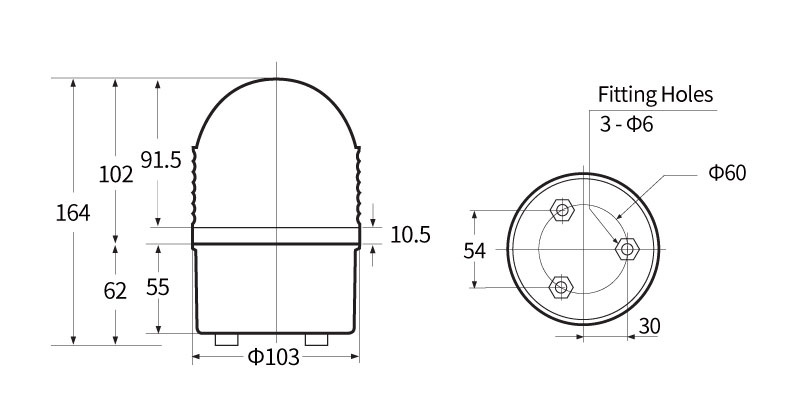

Product outline drawing
