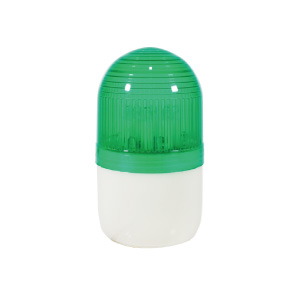

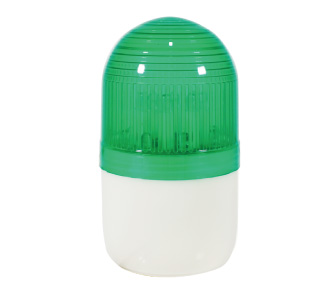

LED flashing/lighting type small beacon
Specification
60mm outer diameter LED compact lighting/flashing warning light
Suitable for use in places where vibration is severe or light bulb replacement is difficult.
No built-in buzzer function
Material Lens
GPPS
Body
ABS
Reflector
PC
Ambient temperature
-25℃ ~ +50℃

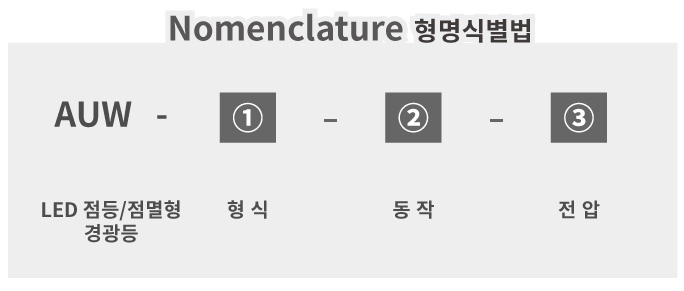

Nomenclature type identification method
Format
L60: Φ60
Action
B: lit | BF: flashing
Voltage
110: AC 110V | 220: AC 220V | 12: DC 12V | 24: DC 24V
Icon description and product configuration
Icon Description
Light Source
Incandescent light bulb
LED lamp
Xenon lamp
Action
Steady type
Flashing
Rotary
Strobe (flash) type
Sound
Maximum volume
Buzzer
Siren
Melody
Voice
Option
Magnet attachment type
High brightness
Protection net
LED bulb lighting/flashing beacon
Φ60
Steady Type
AUW-L60B
Flashing
AUW-L60BF
Specification by model
AUW-L60B / AUW-L60BF
60mm outer diameter small LED bulb lighting/flashing warning light
Color
Red (R) Yellow (Y) Green (G) Blue (B)
| Model | Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|---|
| AUW-L60B/BF | AC 110V | 0.01 (A) | 16EA | 157 g |
| AC 220V | 0.02 (A) | 16EA | 157 g | |
| DC 12V | 0.09 (A) | 16EA | 129 g | |
| DC 24V | 0.15 (A) | 16EA | 129 g |

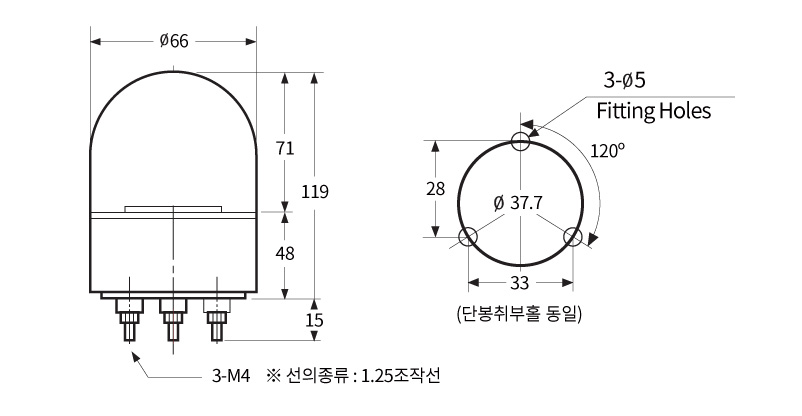

Product outline drawing
