AUW-L125
Specification

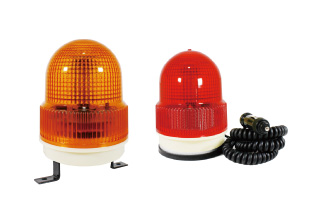

125mm outer diameter standard multifunctional LED beacon
Suitable for use in places where vibration is severe or bulb replacement is difficult
There are two types of standard type and high brightness depending on the brightness of the LED lamp.
Semi-permanent lifespan using electronic circuit board
Using a microchip, you can select four actions: lit / flashing-rotating / flashing / rotating
AC110 ↔ AC220V can be used by adjusting the switch on the internal board of the product.
Basic 1 sound / Built-in buzzer
Volume Max. 90dB at 1m
In addition to the basic 1 note, it can be changed to 3 notes as an order specification.
It is possible to change to a custom sound other than the basic tone
Material (Lens)
PC
Material (Body)
ABS
Ambient temperature
-25℃ ~ +50℃

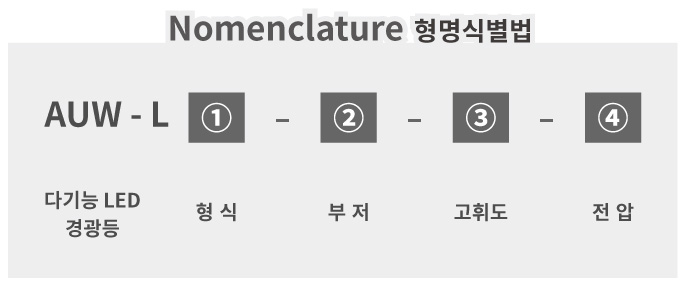

Nomenclature type identification method
Format
125: 125Φ
High brightness
No indication: Standard type | H: high brightness
Buzzer
No indication: No | AB: buzzer | AS: Siren | AM: melody sound
Voltage
110: AC 110V 220: AC 220V 12: DC 12V 24: DC 24V
Product Specification

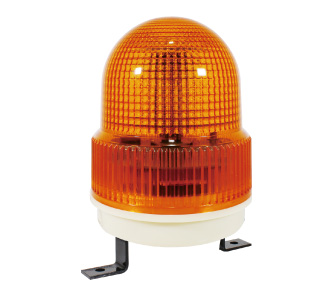

AUW-L125(O)

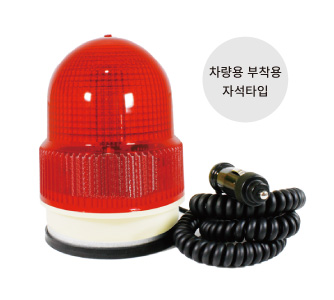

AUW-L125C(R)
AUW-L125
125mm outer diameter standard multifunctional LED beacon
Built-in buzzer (buzzer sound/ siren/ melody)
Color
Red (R) Yellow (Y) Green (G) Blue (B)
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.03 (A) | 54EA | 623 g |
| AC 220V | 0.06 (A) | 54EA | 623 g |
| DC 12V | 0.11 (A) | 54EA | 347 g |
| DC 24V | 0.23 (A) | 54EA | 347 g |
| DC 48V | 0.38 (A) | 54EA | 373 g |
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.05 (A) | 90EA | 646 g |
| AC 220V | 0.1 (A) | 90EA | 646 g |
| DC 12V | 0.19 (A) | 90EA | 370 g |
| DC 24V | 0.38 (A) | 90EA | 370 g |
| DC 48V | 0.66 (A) | 90EA | 415 g |
Built-in buzzer specification
1 basic note or up to 3 notes when ordered
Built-in buzzer output
5W max
Maximum volume
90dB at 1m
| Buzzer | Timbre | |
|---|---|---|
| Buzzer AB | Basic Sound | Beep~~~Beep |
| Order Specification | Beep~beep~beep | |
| Ding-dong | ||
| Buzzer AB | Basic Sound | My happy home |
| Order Specification | For Elysee | |
| Piano sonata | ||
| Siren AS | Basic Sound | Emergency |
| Order Specification | emergency | |
| fire | ||

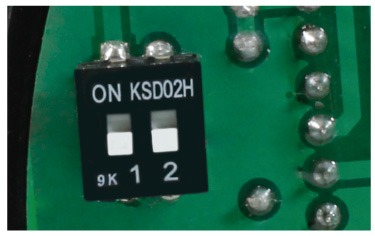

LED DIP switch adjustment method
LED operation can be adjusted by adjusting the dip switch installed inside the lamp
| DIP/SW | One 2 | One 2 | One 2 | One 2 |
|---|---|---|---|---|
| ON | ||||
| OFF | ||||
| DIP |  |
 |
 |
 |
| Operation |  Light On |
 Rotation |
 Rotating/Flashing |
 Flashing |

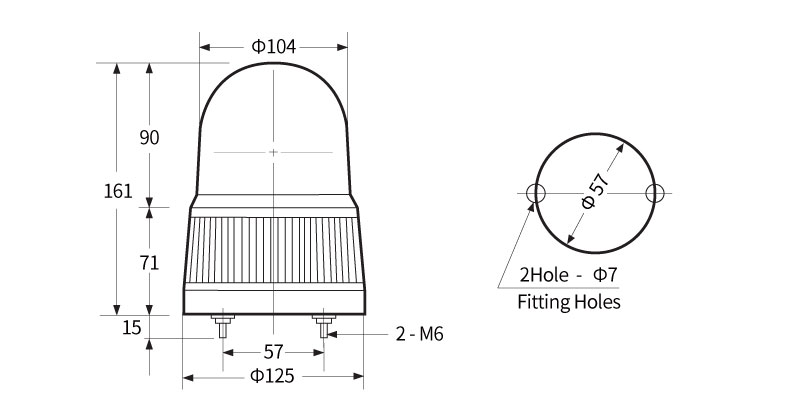

Product outline drawing
