AUW-L125L

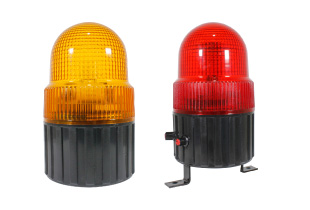

Bulb reflector rotating type AUW-L125L
AUW-L125L
Specification
125mm outer diameter long body standard multifunctional LED warning
Suitable for use in places where vibration is severe or bulb replacement is difficult
There are two types of standard type and high brightness depending on the brightness of the LED lamp.
Semi-permanent lifespan using electronic circuit board
Using a microchip, you can select four actions: lit / flashing-rotating / flashing / rotating
AC110 ↔ AC220V can be used by adjusting the switch on the internal board of the product.
Built-in buzzer
Volume Max. 100dB at 1m
3 basic notes
In addition to the basic tone, voice sound (voice signal function added) can be customized.
Material (Lens)
PC
Material (Body)
ABS
Ambient temperature
-25℃ ~ +50℃

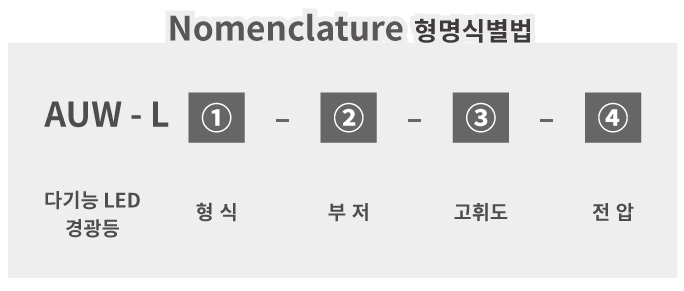

Nomenclature type identification method
Format
125: 125Φ long body
High Brightness
No indication: Standard type | H: high brightness
Buzzer
No indication: No | AB: buzzer | AS: Siren | AM: melody sound
Voltage
110: AC 110V 220: AC 220V 12: DC 12V 24: DC 24V
Product Specification

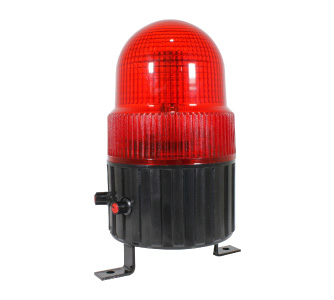

AUW-L125L(R)

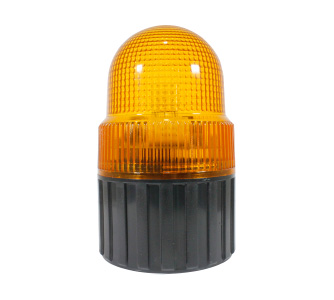

AUW-L125L(O)
AUW-L125L
125mm outer diameter long body standard multifunctional LED warning
Built-in buzzer 3 basic sounds (buzzer sound/ siren/ melody)
Color
Red (R) Yellow (Y) Green (G) Blue (B)
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.03 (A) | 54EA | 1174 g |
| AC 220V | 0.06 (A) | 54EA | 1174 g |
| DC 12V | 0.11 (A) | 54EA | 894 g |
| DC 24V | 0.23 (A) | 54EA | 894 g |
| DC 48V | 0.38 (A) | 54EA | 920 g |
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.05 (A) | 90EA | 1197 g |
| AC 220V | 0.1 (A) | 90EA | 1197 g |
| DC 12V | 0.19 (A) | 90EA | 917 g |
| DC 24V | 0.38 (A) | 90EA | 917 g |
| DC 48V | 0.66 (A) | 90EA | 962 g |
Built-in buzzer specification
1 basic note or up to 3 notes when ordered
Built-in buzzer output
5W max
Maximum volume
Max. 100dB at 1m
| Buzzer | Timbre | |
|---|---|---|
| Buzzer AB | 3 basic notes | Beep~~~Beep |
| Beep~beep~beep | ||
| Ding-dong | ||
| Buzzer AB | 3 basic notes | My happy home |
| For Elysee | ||
| Piano sonata | ||
| Siren AS | 3 basic notes | Emergency |
| emergency | ||
| fire | ||

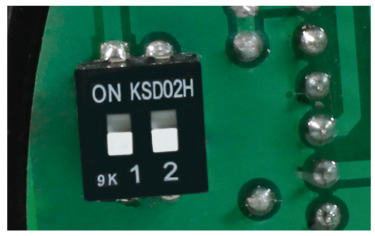

LED DIP switch adjustment method
LED operation can be adjusted by adjusting the dip switch installed inside the lamp
| DIP/SW | One 2 | One 2 | One 2 | One 2 |
|---|---|---|---|---|
| ON | ||||
| OFF | ||||
| DIP |  |
 |
 |
 |
| Operation |  Light On |
 Rotation |
 Rotating/Flashing |
 Flashing |

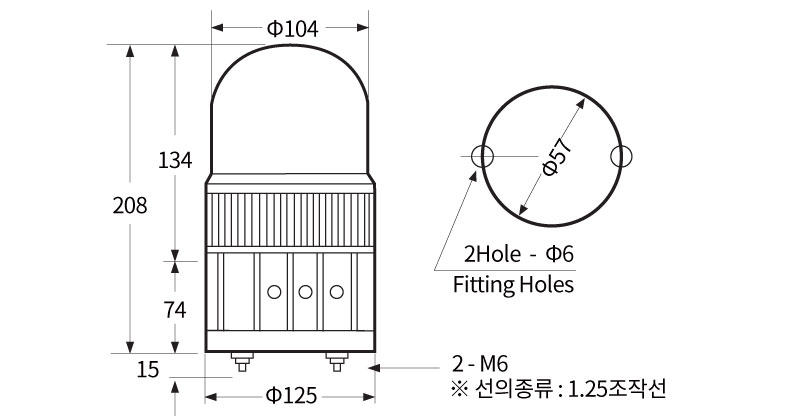

Product outline drawing
