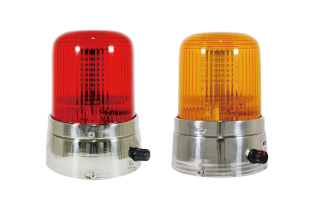

AUW-L150S
Bulb reflector rotating type AUW-L150S
AUW-L150S
Specification
150mm outer diameter SUS body standard multifunctional LED warning
It is lightweight and resistant to impact by using a polystyrene grove with special stripes. The body is strong against impact and excellent corrosion resistance by using a stainless steel (SUS304) body.
Suitable for use in places where vibration is severe or bulb replacement is difficult
There are two types of standard type and high brightness depending on the brightness of the LED lamp.
Semi-permanent lifespan using electronic circuit board
Using a microchip, you can select four actions: lit / flashing-rotating / flashing / rotating
AC110 ↔ AC220V can be used by adjusting the switch on the internal board of the product.
Basic 1 sound / Built-in buzzer
Volume Max. 90dB at 1m
Material (Lens)
GPPS
Material (Body)
SUS304
Ambient temperature
-25℃ ~ +50℃

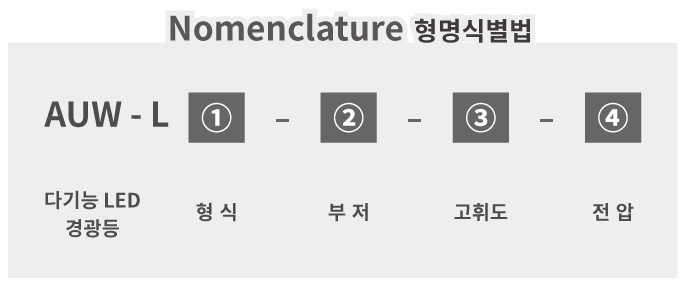

Nomenclature type identification method
Format
150: 150Φ SUS body
High brightness
No indication: Standard type | H: high brightness
Buzzer
No indication: No | AB: buzzer | AS: Siren | AM: melody sound
Voltage
110: AC 110V 220: AC 220V 12: DC 12V 24: DC 24V 48: DC 48V
Product Specification

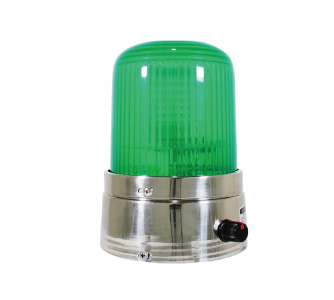

AUW-L150S (G)

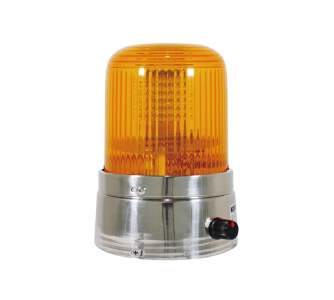

AUW-L150S (O)

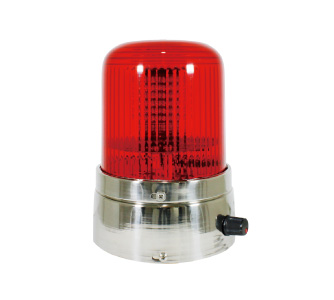

AUW-L150S (R)
AUW-L150S
150mm outer diameter SUS body standard multifunctional LED warning light
Built-in buzzer (buzzer sound/ siren/ melody)
Color
Red (R) Yellow (Y) Green (G) Blue (B)
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.03 (A) | 54EA | 1179 g |
| AC 220V | 0.06 (A) | 54EA | 1179 g |
| DC 12V | 0.11 (A) | 54EA | 880 g |
| DC 24V | 0.23 (A) | 54EA | 880 g |
| DC 48V | 0.38 (A) | 54EA | 880 g |
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.05 (A) | 90EA | 1179 g |
| AC 220V | 0.1 (A) | 90EA | 1179 g |
| DC 12V | 0.19 (A) | 90EA | 880 g |
| DC 24V | 0.38 (A) | 90EA | 880 g |
| DC 48V | 0.66 (A) | 90EA | 880 g |
Built-in buzzer specification
1 basic note
Built-in buzzer output
5W max
Maximum volume
Max. 90dB at 1m
| Buzzer | Timbre |
|---|---|
| Buzzer AB | Beep~~~Beep |
| Melody AM | My happy home |
| Siren AS | Emergency |

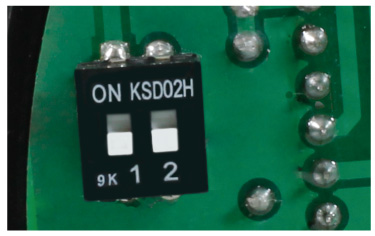

LED DIP switch adjustment method
LED operation can be adjusted by adjusting the dip switch installed inside the lamp
| DIP/SW | One 2 | One 2 | One 2 | One 2 |
|---|---|---|---|---|
| ON | ||||
| OFF | ||||
| DIP |  |
 |
 |
 |
| Operation |  Light On |
 Rotation |
 Rotating/Flashing |
 Flashing |

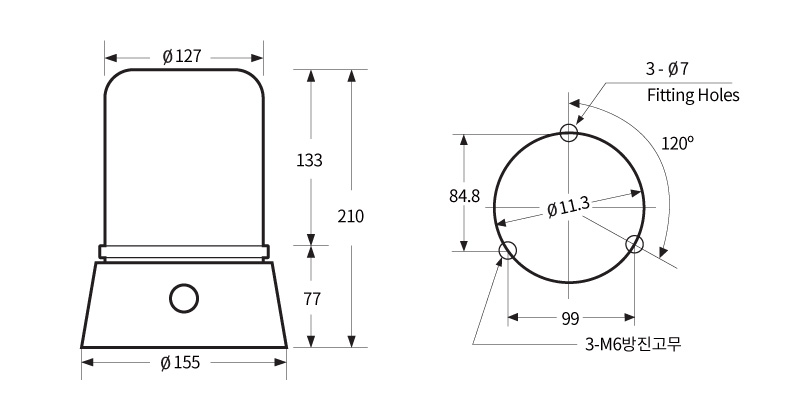

Product outline drawing
