AUW-L80
Specification

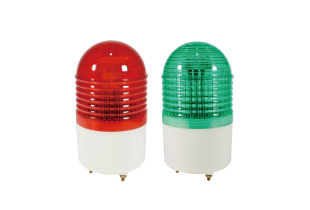

80mm outer diameter small multifunctional LED warning light
Suitable for use in places where vibration is severe or bulb replacement is difficult
Excellent debt dissipation effect by using high-brightness LED device
Semi-permanent lifespan using electronic circuit board
Using a microchip, you can select four actions: lit / flashing-rotating / flashing / rotating
Basic 1 sound / Built-in buzzer
Volume Max. 90dB at 1m
Material (Grove)
GPPS
Material (Body)
ABS
Ambient temperature
-25℃ ~ +50℃

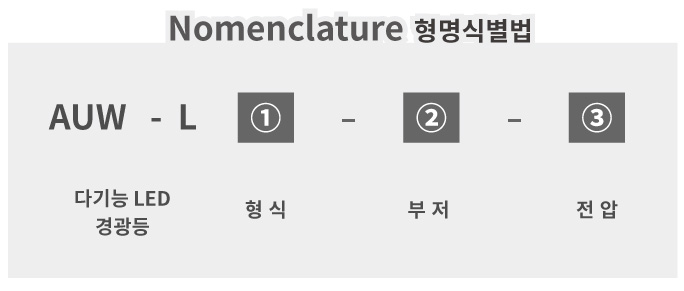

Nomenclature type identification method
Format
80: 80Φ
Buzzer
No indication: No | AB: buzzer | AS: Siren | AM: melody sound
Voltage
110: AC 110V 220: AC 220V 12: DC 12V 24: DC 24V
Product Specification

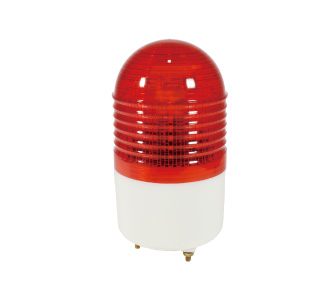

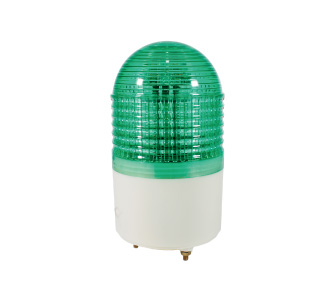

AUW-L80(G)
AUW L80 (R)
AUW-L80
80mm outer diameter small multifunctional LED warning light
Built-in buzzer (buzzer sound/ siren/ melody)
Color
Red (R) Yellow (Y) Green (G) Blue (B)
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.02 (A) | 24EA | 373 g |
| AC 220V | 0.03 (A) | 24EA | 373 g |
| DC 12V | 0.13 (A) | 24EA | 296 g |
| DC 24V | 0.21 (A) | 24EA | 296 g |
Built-in buzzer specification
1 basic note
Built-in buzzer output
5W max
Maximum volume
90dB at 1m
| Buzzer | Timbre |
|---|---|
| Buzzer AB | Beep~~~Beep |
| Melody AM | My happy home |
| Siren AS | Emergency |

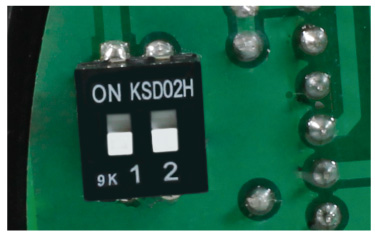

LED DIP switch adjustment method
LED operation can be adjusted by adjusting the dip switch installed inside the lamp
| DIP/SW | One 2 | One 2 | One 2 | One 2 |
|---|---|---|---|---|
| ON | ||||
| OFF | ||||
| DIP |  |
 |
 |
 |
| Operation |  Light On |
 Rotation |
 Rotating/Flashing |
 Flashing |

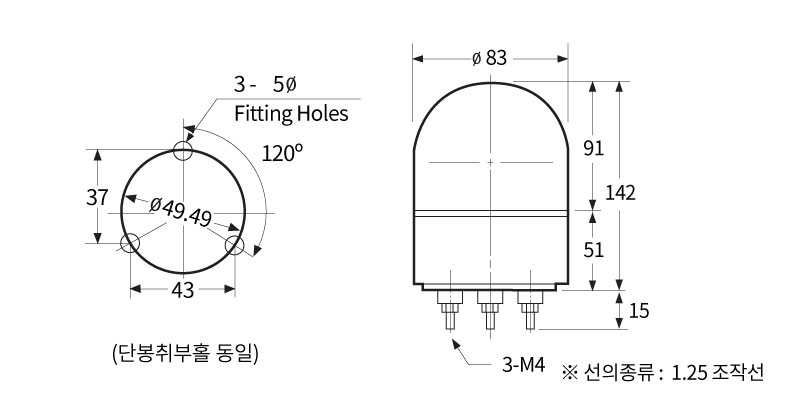

Product outline drawing
