AUW-X100
Specification
100mm outer diameter small flashlight
Excellent light dissipation effect due to the light source effect of xenon lamp
Lamp life is 4 times that of ordinary light bulbs
Excellent energy saving effect because current consumption is about 1/4 lower than that of rotating lamp
Two types of xenon lamp brightness standard type and high brightness
Material (Grove)
GPPS
Material (Body)
ABS
Ambient temperature
-25℃ ~ +50℃

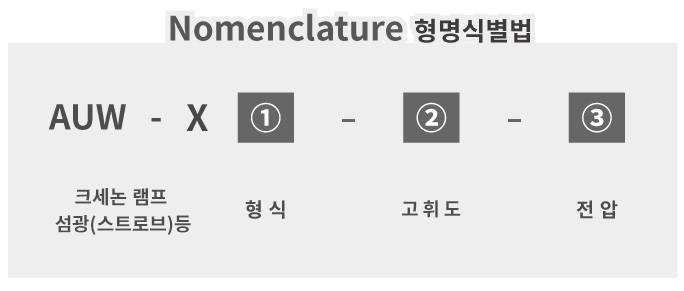

Nomenclature type identification method
Format
80: 80Φ
High brightness
No indication: No | H: high brightness
Voltage
110: AC 110V 220: AC 220V 12: DC 12V 24: DC 24V
Product Specification
AUW-X100(R)
AUW-X100(Y)
AUW-X100(B)
AUW-X100
100mm outer diameter small flashlight
Two types of xenon lamp brightness standard type and high brightness
Vehicle magnet type available AUW-X100C

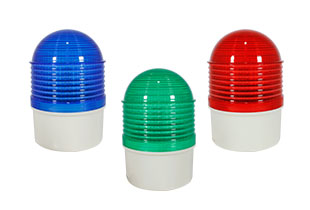

Color
Red (R) Yellow (Y) Green (G) Blue (B)
| Rated voltage | Flash | Current consumption | LED EA | Weight |
|---|---|---|---|---|
| AC 110V | 50 to 60 | 0.13 (A) | 6W | 346 g |
| AC 220V | 50 to 60 | 0.11 (A) | 6W | 312 g |
| DC 12V | 50 to 60 | 1.00 (A) | 6W | 312 g |
| DC 24V | 50 to 60 | 0.62 (A) | 6W | 312 g |
| Rated voltage | Flash | Current consumption | LED EA | Weight |
|---|---|---|---|---|
| AC 110V | 80 to 100 | 0.23 (A) | 16W | 346 g |
| AC 220V | 80 to 100 | 0.19 (A) | 16W | 339 g |
| DC 12V | 80 to 100 | 1.28 (A) | 16W | 312 g |
| DC 24V | 80 to 100 | 0.66 (A) | 16W | 312 g |

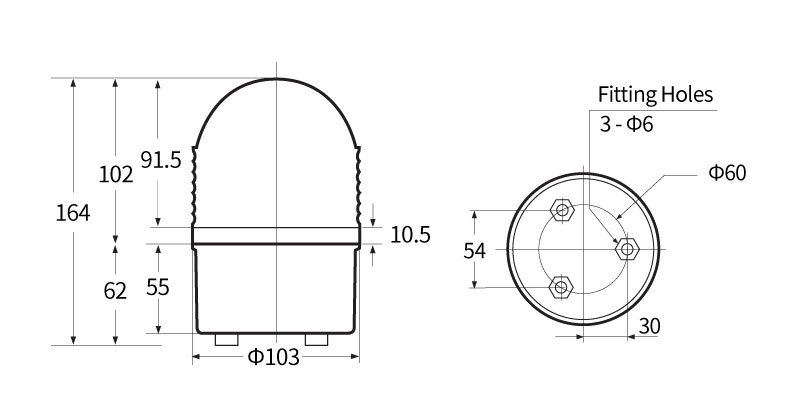

Product outline drawing
