Braided sleeve

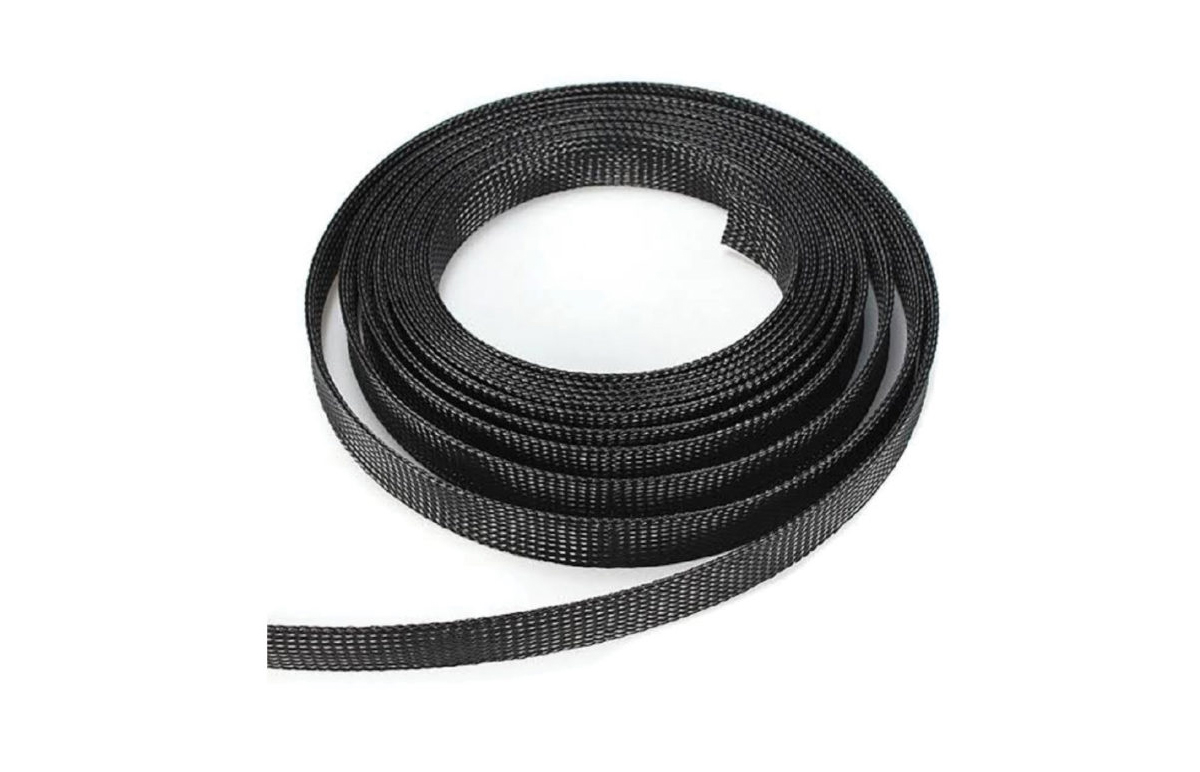

Braided Sleeve

Polyester sleeve features. It can be used for wide range of application suc as military and aerospace wiring and harnessing applications. Light weight, Heat resistance up to 125C, High abrasion and Flexibility, Maintains it properties in hostile environments, Available in black and other colours on request.

Specification

Ployester braided sleeve are Braided sleeve of light weight & tough polyester Manofilaments, which provides economic & problem free assembling of cable, avoids heat & Moisture problem which might arise in extruded sleeves, the material is non Corrosive with Operating Temperature of -30C to +125C. The design allows for easy & quick installation or removal of the cable assembly, inspection and maintenance of the cable assembly/harness..

Braided Sleeve Specification
Base Material

Polyester Monofliament Yarn

Melting Point

250℃ Operating

Temperature Range

-35℃ to 125℃

Fire Retardancy

Self extinguishing conforming to UL94-V0 and NON-FR

Color

Black

Quality

As per LHB Standards

Braided Sleeve Specification
