Aucs series
All-in-one AUCS series

A self-contained model consisting of an integrated warning/flash light and signal phone for heavy vessels. AUCS-25W, AUCS-50W

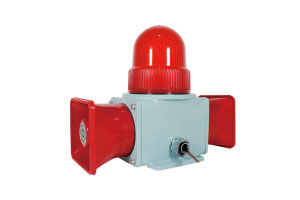

Product thumbnail

AUCS series with integrated warning light signal phone

A self-contained model consisting of an integrated warning/flash light and signal phone for heavy vessels

Specification

View Catalog

Model consisting of 125mm warning light for heavy vessels & electronic signal phone

Depending on the purpose of installation, it is possible to select and use 2 types of housing and light source of light bulb reflector, multifunctional LED, and xenon lamp.

Perfect waterproof structure, suitable for outdoor or ship and heavy industries

Terminal block installation inside the product or in the terminal box

Cable entry mounting standard is #16 zinc connector, can be changed to cable gland

One-way (25W)/two-way (50W) models are available depending on the output

Material (LENS )

PS,PC(125mm LED&Xenon)

Material (Body )

AL 7 class A AC7A

Material (Ring)

CU

Material (Signal phone)

ABS resin

Body standard color

MUNSELL NO.7.5G/7.2

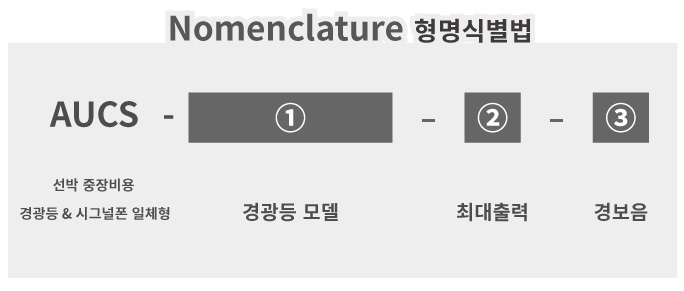

Nomenclature type identification method

Product Measurement

Warning light model

R125: rotating reflector warning light (125Φ)
L125: Multi-function LED warning light (125Φ)
X125: xenon lamp flashlight (125Φ)

Maximum output

25W | 50W

Alarm sound

AS: Siren | AM: Melody | AB: buzzer

Icon description and product configuration
Icon Description
Light Source

Icon Incandescent light bulb

Icon LED lamp

Icon Xenon lamp

Action

Icon Steady type

Icon Flashing

Icon Rotary

Icon Strobe (flash) type

Sound

Icon Maximum volume

Icon Buzzer

Icon Siren

Icon Melody

Icon Voice

Option

Icon Magnet attachment type

Icon High brightness

Icon Protection net

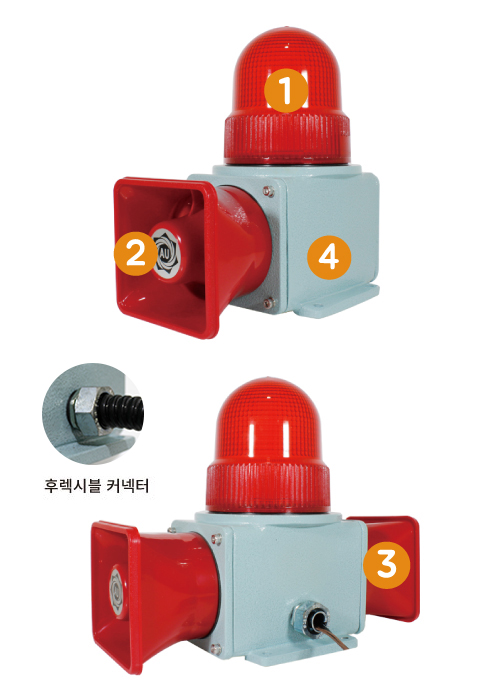

AUCS Series Product Configuration Diagram

Product Thumbnail

Light source and function

Product Thumbnail R bulb reflector rotating type

Product Thumbnail L Multi-function LED

Product Thumbnail X xenon lamp flash type

Select Signal Phone Tone

Siren sound, melody sound, and buzzer sound can be used according to the purpose.

Alarm Sound Channel Basic Voice (3 Notes) Volume
Siren AS CH 1 Emergency 120 db
CH 2 Emergency
CH 3 Fire
Melody AM CH 1 My happy home
CH 2 For Elysee
CH 3 Turkish march
Buzzer AB CH 1 Beep~beep~beep
CH 2 Ding dong ding dong
CH 3 Beep beep beep
Protection net

It is possible to select a protection net to prevent damage to the lens by impact by installing it outside the lens.

Body

Aluminum housing with excellent durability is used, and it has excellent waterproof and dustproof effects due to its perfect sealed structure.

The terminal block box with a flexible connector is installed at the bottom of the product for easy connection.

Specifications by model

Product Thumbnail

AUCS-R125
Outer diameter

125mm outer diameter light bulb reflector rotating beacon & signal phone integrated type for heavy vessels

Color

Red (R) Yellow (Y) Green (G) Blue (B)

Specifications

Model AUCS-R125-25W
Rated voltage Current consumption Light bulb specification Weight
AC 110V 0.42 (A) 12V 15W 3670 g
AC 220V 0.21 (A) 12V 15W 3760 g
DC 12V 3.76 (A) 12V 15W 3697 g
DC 24V 1.79 (A) 24V 15W 3735 g
DC 48V 0.94 (A) 48V 15W 3837 g
Model AUCS-R125-50W
Rated voltage Current consumption Light bulb specification Weight
AC 110V 0.65 (A) 12V 15W 4659 g
AC 220V 0.32 (A) 12V 15W 4659 g
DC 12V 5.97 (A) 12V 15W 4594 g
DC 24V 1.79 (A) 24V 15W 4594 g
DC 48V 1.49 (A) 48V 15W 4696 g

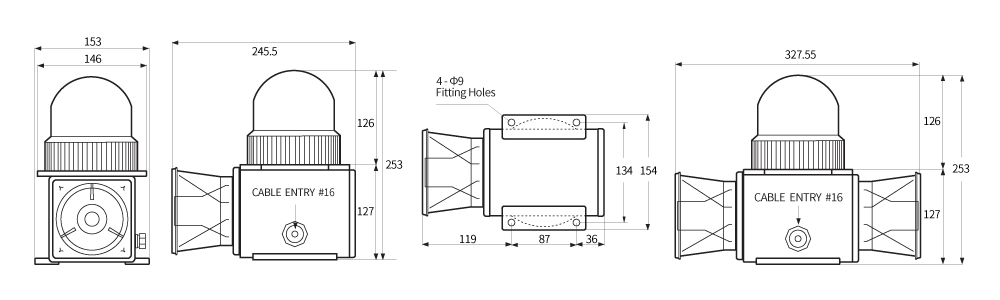

Product outline drawing

Product Thumbnail

Product Thumbnail

AUCS-L125
Outer diameter

125mm outer diameter multifunctional LED warning light & signal phone integrated type for heavy vessels

Color

Red (R) Yellow (Y) Green (G) Blue (B)

Specifications

Model AUCS-L125-25W
Rated voltage Current consumption Light bulb specification Weight
AC 110V 0.29 (A) 54EA 3390 g
AC 220V 0.14 (A) 54EA 3390 g
DC 12V 2.51 (A) 54EA 3097 g
DC 24V 1.22 (A) 54EA 3105 g
DC 48V 0.63 (A) 54EA 3120 g
Model AUCS-L125-50W
Rated voltage Current consumption Light bulb specification Weight
AC 110V 0.51 (A) 54EA 4272 g
AC 220V 0.26 (A) 54EA 4272 g
DC 12V 4.72 (A) 54EA 3979 g
DC 24V 2.19 (A) 54EA 3987 g
DC 48V 1.17 (A) 54EA 4002 g
Product outline drawing

Product Thumbnail

Product Thumbnail

AUCS-X125
Outer diameter

125mm external diameter flashlight & signal phone integrated type for ship heavy equipment

Color

Red (R) Yellow (Y) Green (G) Blue (B)

Specifications

Model AUCS-X125-25W
Rated voltage Current consumption Light bulb specification Weight
AC 110V 0.36 (A) 6W 3119 g
AC 220V 0.22 (A) 6W 3119 g
DC 12V 2.93 (A) 6W 3122 g
DC 24V 1.41 (A) 6W 3122 g
Model AUCS-X125-50W
Rated voltage Current consumption Light bulb specification Weight
AC 110V 0.59 (A) 6W 4001 g
AC 220V 0.33 (A) 6W 4001 g
DC 12V 5.14 (A) 6W 4004 g
DC 24V 2.38 (A) 6W 4004 g
Product outline drawing

Product Thumbnail
