All-in-one warning light & signal phone AUMS series
All-in-one warning light & signal phone AUMS series. AUMS-125 | AUMS-150
All-in-one AUMS series
Specification
AUMS series with integrated warning light signal phone
A wall-mounted model consisting of an integrated warning/flash light and signal phone for heavy vessels
A wall-mounted model with integrated warning lights for ship's heavy equipment & electronic signal phone
Depending on the purpose of installation, it is possible to select and use three light sources: light bulb reflector, multifunctional LED, and xenon lamp.
The tone switch installed outside the product allows convenient tone change.
LED and xenon lamps can be of high luminance type and have excellent light dissipation effect.
Perfect waterproof structure, suitable for outdoor or ship and heavy industries
Easy wiring as terminal block is installed outside the product
There are 2 types according to the output (25W / 35W)
Material (LENS )
PS,PC(125mm LED&Xenon)
Material (Body )
AL 7 class A AC7A
Material (Ring)
CU
Material (Signal Phone)
ABS resin
Body standard color
MUNSELL NO.7.5G/7.2
Ambient temperature
-25℃ ~ +50℃
Nomenclature type identification method
AUMS
Warning light model
R125: rotating reflector warning light (125Φ)
R150: rotating reflector warning light (150Φ)
L125: Multi-function LED warning light (125Φ)
L150: Multi-function LED warning light (150Φ)
X125: xenon lamp flashlight (125Φ)
X150: xenon lamp flashlight (150Φ)
High brightness
No indication: standard type
H: high brightness
Maximum output
25W | 35W
Alarm Sound
AS: Siren
AM: Melody
AB: buzzer
Icon description and product configuration
Icon Description
Light Source
Incandescent light bulb
LED lamp
Xenon lamp
Action
Steady type
Flashing
Rotary
Strobe (flash) type
Sound
Maximum volume
Buzzer
Siren
Melody
Voice
Option
Magnet attachment type
High brightness
Protection net

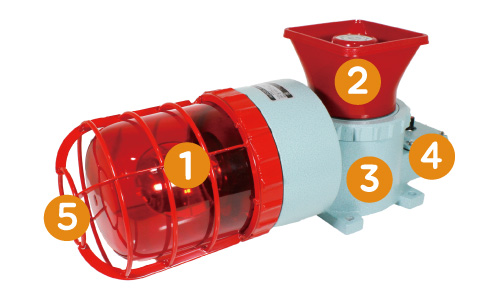

AUMS Series Product Configuration Diagram
Light source and function
Bulb reflector rotating type
Multifunctional LED
Xenon lamp flash type
Grove Outer Diameter
125mm
150mm

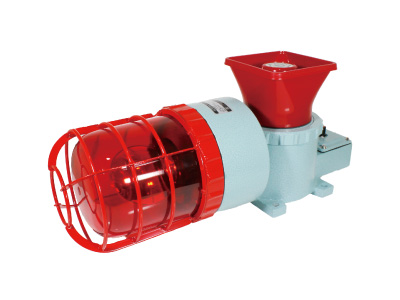

Protection net
It is possible to select a protection net to prevent damage to the lens by impact by installing it outside the lens.
Specifications by model
125Φ
AUM-A-R125
AUM-A-L125
AUM-A-X125
150Φ
AUM-B-R125
AUM-B-L125
AUM-B-X125
Specifications by model
AUMS-R125
Outer diameter
125mm outer diameter light bulb reflector rotating beacon & signal phone integrated type for heavy vessels
Rotation speed
There are 2 types depending on the output 25W / 35W
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.42 (A) | 12V 15W | 4720 g |
| AC 220V | 0.21 (A) | 12V 15W | 4720 g |
| DC 12V | 3.76 (A) | 12V 15W | 4153 g |
| DC 24V | 1.79 (A) | 24V 15W | 4153 g |
| DC 48V | 0.85 (A) | 48V 15W | 4198 g |
AUMS-L125
Outer diameter
125mm outer diameter LED warning light & signal phone integrated type for ship heavy equipment
There are 2 types depending on the output 25W / 35W
There are standard type and high brightness type according to LED brightness
Four actions (lit/flashing-rotating/flashing/rotating) can be selected using a microchip
Number of rotations
arbitrary adjustment
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.29 (A) | 54EA | 4250 g |
| AC 220V | 0.14 (A) | 54EA | 4250 g |
| DC 12V | 2.51 (A) | 54EA | 3957 g |
| DC 24V | 1.22 (A) | 54EA | 4165 g |
| DC 48V | 0.59 (A) | 54EA | 3980 g |
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.31 (A) | 90EA | 4270 g |
| AC 220V | 0.18 (A) | 90EA | 4270 g |
| DC 12V | 2.79 (A) | 90EA | 3977 g |
| DC 24V | 1.37 (A) | 90EA | 4185 g |
| DC 48V | 0.67 (A) | 90EA | 4060 g |
AUMS-X125
Outer diameter
All-in-one type of 125mm outer diameter bulb flashlight & signal phone for heavy vessels
There are 2 types depending on the output 25W / 35W
There are standard type and high brightness type depending on the brightness of the xenon lamp
Number of flashes
50 ~ 60 /80 ~ 100 (high brightness)
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | XENON | Weight |
|---|---|---|---|
| AC 110V | 0.36 (A) | 6W | 4080 g |
| AC 220V | 0.22 (A) | 6W | 4080 g |
| DC 12V | 2.83 (A) | 6W | 3510 g |
| DC 24V | 1.41 (A) | 6W | 3510 g |
| Rated voltage | Current consumption | XENON | Weight |
|---|---|---|---|
| AC 110V | 0.46 (A) | 16W | 4082 g |
| AC 220V | 0.3 (A) | 16W | 4082 g |
| DC 12V | 3.21 (A) | 16W | 3512 g |
| DC 24V | 1.45 (A) | 16W | 3512 g |
AUMS-R150
Outer diameter
150mm outer diameter light bulb reflector rotating beacon & signal phone for heavy vessels
Rotation speed
There are 2 types depending on the output 25W / 35W
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.42 (A) | 12V 15W | 5290 g |
| AC 220V | 0.21 (A) | 12V 15W | 5290 g |
| DC 12V | 3.76 (A) | 12V 15W | 4723 g |
| DC 24V | 1.79 (A) | 24V 15W | 4723 g |
| DC 48V | 0.85 (A) | 48V 15W | 4768 g |
AUMS-L125
Outer diameter
125mm outer diameter LED warning light & signal phone integrated type for ship heavy equipment
There are 2 types depending on the output 25W / 35W
There are standard type and high brightness type according to LED brightness
Four actions (lit/flashing-rotating/flashing/rotating) can be selected using a microchip
Number of rotations
arbitrary adjustment
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.29 (A) | 54EA | 4840 g |
| AC 220V | 0.14 (A) | 54EA | 4840 g |
| DC 12V | 2.51 (A) | 54EA | 4547 g |
| DC 24V | 1.22 (A) | 54EA | 4755 g |
| DC 48V | 0.59 (A) | 54EA | 4630 g |
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.31 (A) | 90EA | 4860 g |
| AC 220V | 0.18 (A) | 90EA | 4860 g |
| DC 12V | 2.79 (A) | 90EA | 4567 g |
| DC 24V | 1.37 (A) | 90EA | 4775 g |
| DC 48V | 0.67 (A) | 90EA | 4650 g |
AUMS-X150
Outer diameter
All-in-one type of 150mm outer diameter bulb flashlight & signal phone for heavy vessels
There are 2 types depending on the output 25W / 35W
Number of flashes
80 ~ 100 (high brightness)
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | XENON | Weight |
|---|---|---|---|
| AC 110V | 0.46 (A) | 16W | 4650 g |
| AC 220V | 0.3 (A) | 16W | 4650 g |
| DC 12V | 3.21 (A) | 16W | 4080 g |
| DC 24V | 1.45 (A) | 16W | 4080 g |

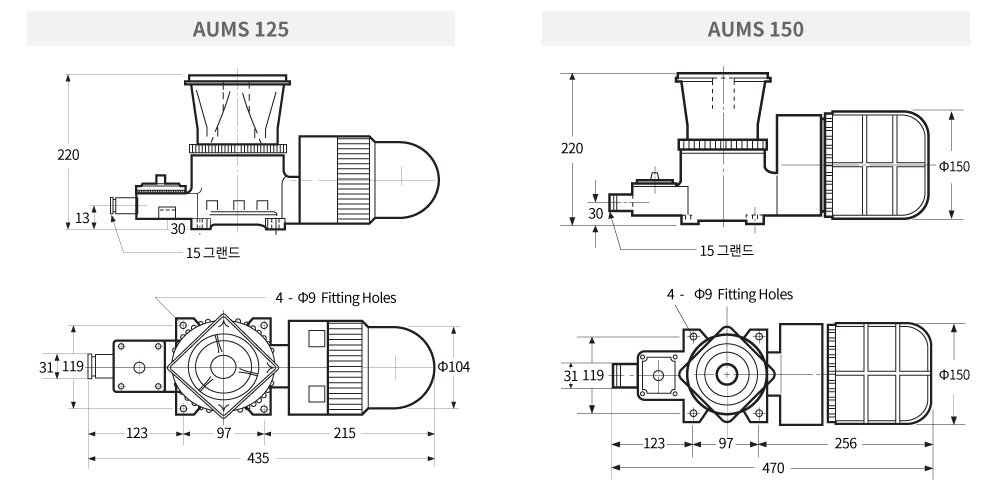

Product outline drawing
