Warning light & signal phone combination type AUPS series
Warning light & signal phone combination type AUPS series. AUPS-01, AUPS-02 & AUPS-03
Combination type AUPS series
Specification
Warning light signal phone combination type AUPS series
The AUPS series is a model that is combined to suit your needs.
Manufactured by combination of electronic signal phone + warning light model according to user's choice
Electronic signal phone output is 25W
PS-01 is a combination of a small 100Φ beacon & electronic signal phone
PS-02 is a combination of standard 125Φ/150Φ warning light & electronic signal phone
PS-03 is a combination of 125Φ warning light & electronic signal phone for ship heavy industry
Easy wiring as terminal block is installed outside the product
Material (LENS )
PS,PC(LED&Xenon)
Material (Body )
AL 7 class A AC7A
Material (Signal Phone)
ABS resin
Ambient temperature
-25℃ ~ +50℃

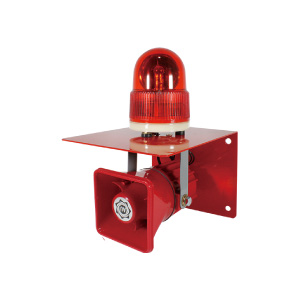

Combination of small 100Φ beacon and electronic signal phone

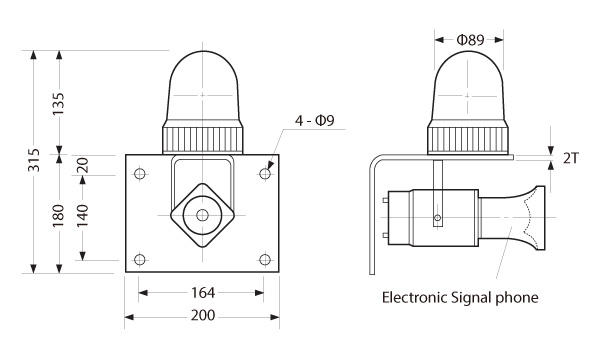

Product outline drawing (mm)
| Beacon type | Outer diameter | Combinable model |
|---|---|---|
| Rotating bulb reflector | 100Φ | AUW-R100 |
| Multifunctional LED | AUW-L100 | |
| Xenon flash | AUW-X100 |

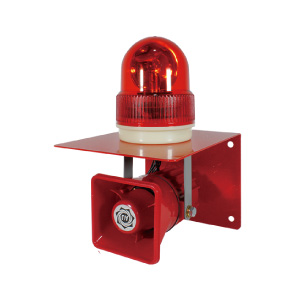

Combination of standard 125Φ /150Φ warning light and electronic signal phone

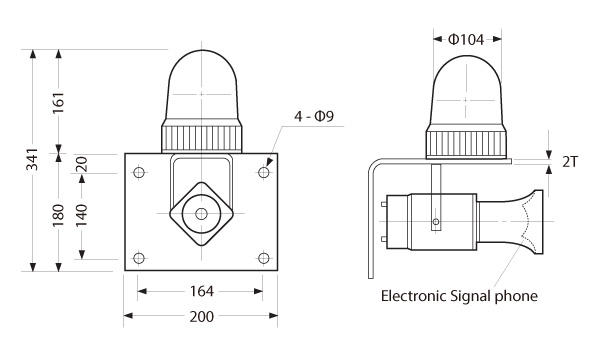

Product outline drawing (mm)
| Beacon type | Outer diameter | Combinable model |
|---|---|---|
| Rotating bulb reflector | 125Φ, 150Φ | AUW-R125, AUW-R150, AUW-R150H |
| Multifunctional LED | AUW-L125, AUW-L125H, AUW-L150, AUW-L125H | |
| Xenon flash | AUW-X125, AUW-X125H |

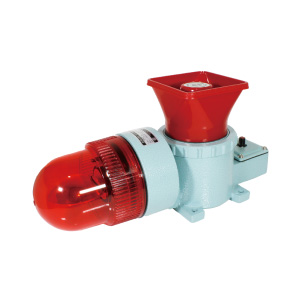

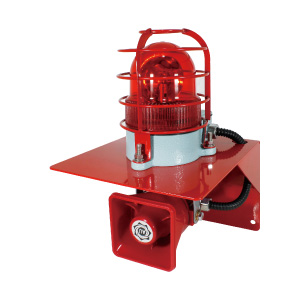

Combination of 125Φ warning light and electronic signal phone for marine heavy industry
Grove protection net option available

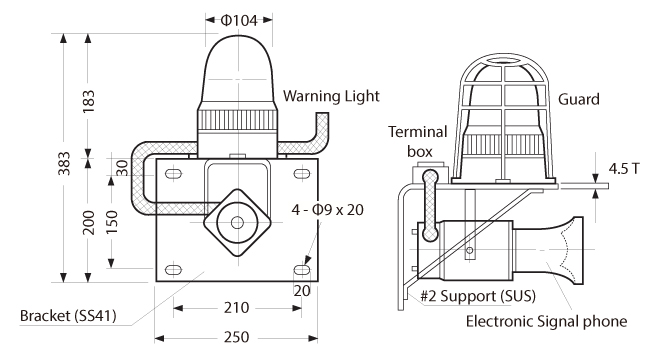

Product outline drawing (mm)
| Beacon type | Outer diameter | Combinable model |
|---|---|---|
| Rotating bulb reflector | 125Φ | AUM-R125 |
| Multifunctional LED | AUM-L125, AUM-L125H | |
| Xenon flash | AUM-X125, AUM-X125H |
