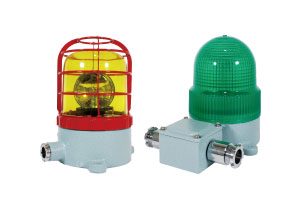

Warning Light For Ship Heavy Industry
Warning/flash light for heavy vessels with excellent waterproof function and corrosion resistance due to its sealed structure. Ship Heavy Industry warning light AUM-A-125,AUM-B-125,AUM-A-150,AUM-B150.
Warning light for ship heavy industry
Specification
Warning/flash light for heavy vessels with excellent waterproof function and corrosion resistance due to its sealed structure
The body is made of an aluminum housing structure, so it is resistant to impact and has excellent corrosion resistance.
Depending on the purpose of installation, it is possible to select and use 2 types of housing and light source of light bulb reflector, multifunctional LED, and xenon lamp.
Perfect waterproof structure, suitable for outdoor or ship and heavy industries
Terminal block installation inside the product or in the terminal box
High brightness type is also possible depending on the light source
Material (LENS )
PS,PC(125mm LED&Xenon)
Material (Body )
AL 7 class A AC7A
Material (Ring)
CU
Body standard color
MUNSELL NO.7.5G/7.2

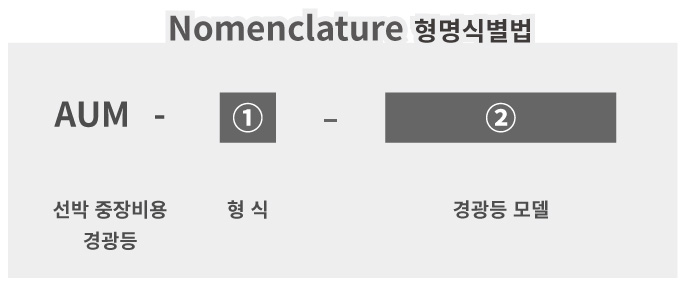

Nomenclature type identification method
Format
A type | B type
Warning light model
R125 150: rotating reflector warning light (125Φ /150Φ)
L125 150: Multi-function LED warning light (125Φ /150Φ)
X125 150: xenon lamp flashlight (125Φ /150Φ)
Icon description and product configuration
Icon Description
Light Source
Incandescent light bulb
LED lamp
Xenon lamp
Action
Steady type
Flashing
Rotary
Strobe (flash) type
Sound
Maximum volume
Buzzer
Siren
Melody
Voice
Option
Magnet attachment type
High brightness
Protection net

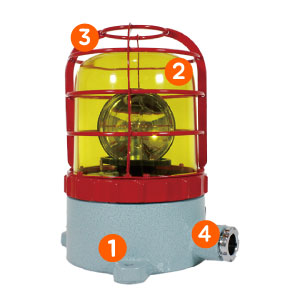

AUM Series Product Configuration Diagram
Body type
There are 2 types of housing according to A/B use
AUM-A
Basic housing model without terminal box attached
Suitable for mounting on a narrow space or ceiling

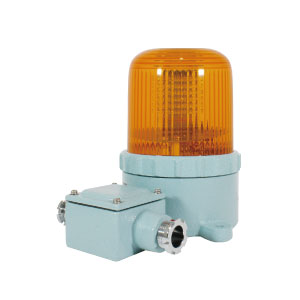

AUM-B
Terminal box and 2 cable glands are installed in the housing.
Convenient wiring with terminal box attached
Light source and function

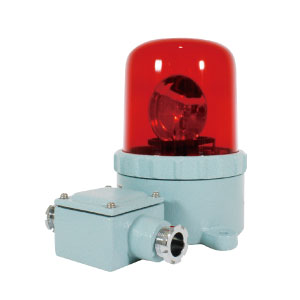

Bulb reflector rotating type

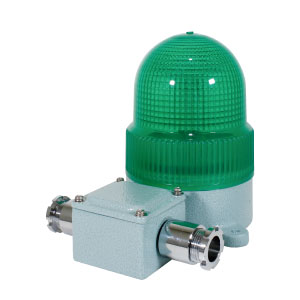

Multifunctional LED

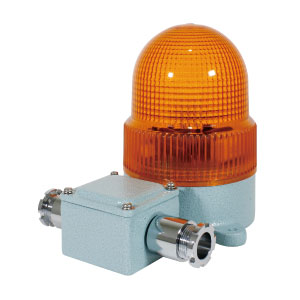

Xenon lamp flash type
Grove Outer Diameter
125mm
150mm

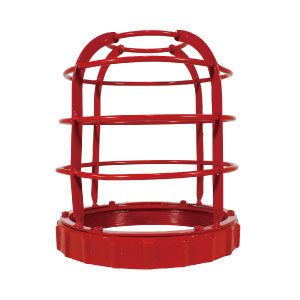

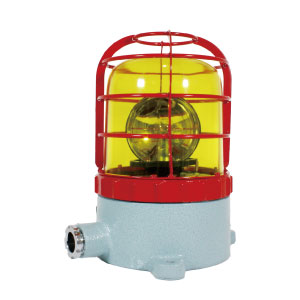

Protection net
It is possible to select a protection net to prevent damage to the lens by impact by installing it outside the lens.

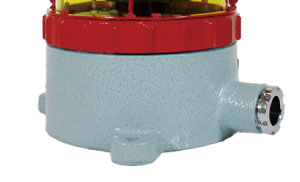

Sealed waterproof structure
As each part is combined with a waterproof and dustproof structure, it has excellent airtightness, so it is suitable for use in ship heavy industry, etc.
Cable entry
A type is equipped with a basic cable gland and B type is equipped with 2 cable glands in a basic terminal box.
Warning/flashlight for heavy equipment
A Type
AUM-A-125
AUM-A-R125

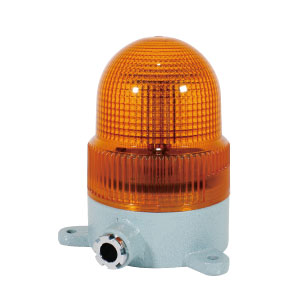

AUM-A-L125

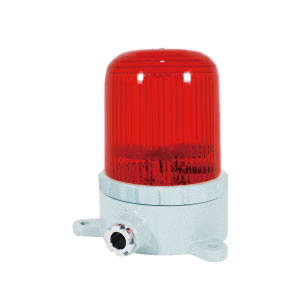

AUM-A-X125

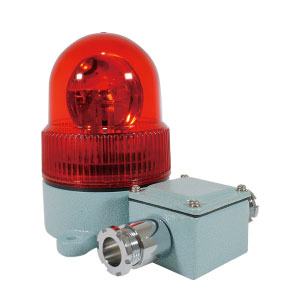

AUM-B-125
AUM-B-R125

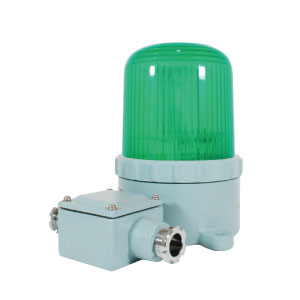

AUM-B-L125
AUM-B-X125
B TYPE
AUM-A-150
AUM-A-R150
AUM-A-L150
AUM-A-X150
AUM-B-150
AUM-B-R150
AUM-B-L150
AUM-B-X150
Specifications by model
AUM-A-R125
Outer diameter
125mm outer diameter light bulb reflector rotating beacon for heavy vessels
Rotation speed
90 ~ 100
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.18 (A) | 12V 15W | 1687 g |
| AC 220V | 0.09 (A) | 12V 15W | 1687 g |
| DC 12V | 1.4 (A) | 12V 15W | 1125 g |
| DC 24V | 0.7 (A) | 24V 15W | 1125 g |
| DC 48V | 0.38 (A) | 48V 15W | 1170 g |
AUM-A-L125 multifunctional LED warning light
Outer diameter
125mm outer diameter multifunctional LED warning light for heavy vessels
LED brightness standard type and high brightness 2 types
Number of rotations
arbitrary adjustment
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.03 (A) | 54EA | 1337 g |
| AC 220V | 0.06 (A) | 54EA | 1337 g |
| DC 12V | 0.11 (A) | 54EA | 1047 g |
| DC 24V | 0.23 (A) | 54EA | 1055 g |
| DC 48V | 0.38 (A) | 54EA | 1070 g |
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.05 (A) | 90EA | 1360 g |
| AC 220V | 0.1 (A) | 90EA | 1360 g |
| DC 12V | 0.19 (A) | 90EA | 1070 g |
| DC 24V | 0.38 (A) | 90EA | 1078 g |
| DC 48V | 0.66 (A) | 90EA | 1093 g |
AUM-A-X125 xenon lamp flash (strobe), etc.
Outer diameter
125mm outer diameter xenon lamp flash (strobe) for heavy equipment
Two types of xenon lamp brightness standard type and high brightness
Number of flashes
50 ~ 60 /80 ~ 100 (high brightness)
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Flash | Current consumption | XENON | Weight |
|---|---|---|---|---|
| AC 110V | 50-60 | 0.13 (A) | 6W | 1076 g |
| AC 220V | 50-60 | 0.11 (A) | 6W | 1056 g |
| DC 12V | 50-60 | 1.0 (A) | 6W | 1099 g |
| DC 24V | 50-60 | 0.62 (A) | 6W | 1099 g |
| Rated voltage | Flash | Current consumption | XENON | Weight |
|---|---|---|---|---|
| AC 110V | 80-100 | 0.23 (A) | 16W | 1078 g |
| AC 220V | 80-100 | 0.19 (A) | 16W | 1058 g |
| DC 12V | 80-100 | 1.28 (A) | 16W | 1101 g |
| DC 24V | 80-100 | 0.66 (A) | 16W | 1101 g |

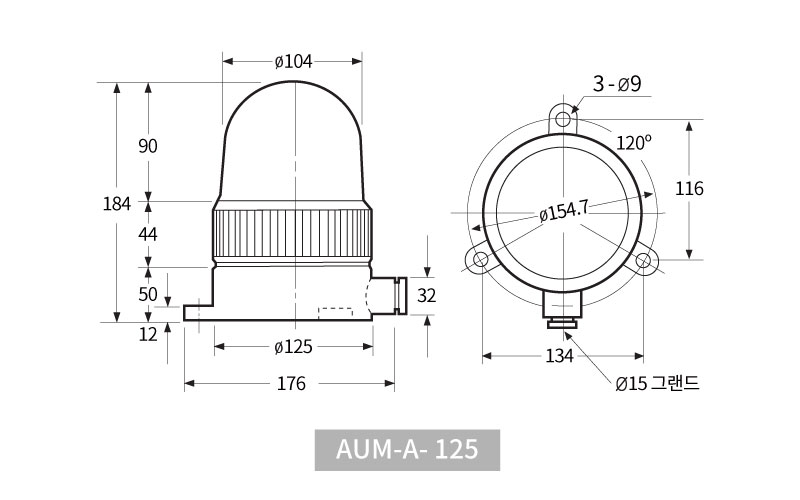

Product outline drawing
AUM-B-R125
Outer diameter
125mm outer diameter light bulb reflector rotating beacon for heavy vessels
Rotation speed
90 ~ 100
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.18 (A) | 12V 15W | 2220 g |
| AC 220V | 0.09 (A) | 12V 15W | 2220 g |
| DC 12V | 1.4 (A) | 12V 15W | 1658 g |
| DC 24V | 0.7 (A) | 24V 15W | 1658 g |
| DC 48V | 0.38 (A) | 48V 15W | 1703 g |
AUM-B-L125 multifunctional LED warning light
Outer diameter
125mm outer diameter multifunctional LED warning light for heavy vessels
LED brightness standard type and high brightness 2 types
Number of rotations
arbitrary adjustment
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.03 (A) | 54EA | 1887 g |
| AC 220V | 0.06 (A) | 54EA | 1887 g |
| DC 12V | 0.11 (A) | 54EA | 1683 g |
| DC 24V | 0.23 (A) | 54EA | 1691 g |
| DC 48V | 0.38 (A) | 54EA | 1706 g |
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.05 (A) | 90EA | 1897 g |
| AC 220V | 0.1 (A) | 90EA | 1897 g |
| DC 12V | 0.19 (A) | 90EA | 1703 g |
| DC 24V | 0.38 (A) | 90EA | 1711 g |
| DC 48V | 0.66 (A) | 90EA | 1726 g |
AUM-B-X125 xenon lamp flash (strobe), etc.
Outer diameter
125mm outer diameter xenon lamp flash (strobe) for heavy equipment
Two types of xenon lamp brightness standard type and high brightness
Number of flashes
50 ~ 60/80 ~ 100 (high brightness)
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Flash | Current consumption | XENON | Weight |
|---|---|---|---|---|
| AC 110V | 50-60 | 0.13 (A) | 6W | 1712 g |
| AC 220V | 50-60 | 0.11 (A) | 6W | 1695 g |
| DC 12V | 50-60 | 1.0 (A) | 6W | 1735 g |
| DC 24V | 50-60 | 0.62 (A) | 6W | 1735 g |
| Rated voltage | Flash | Current consumption | XENON | Weight |
|---|---|---|---|---|
| AC 110V | 80-100 | 0.23 (A) | 16W | 1714 g |
| AC 220V | 80-100 | 0.19 (A) | 16W | 1697 g |
| DC 12V | 80-100 | 1.28 (A) | 16W | 1737 g |
| DC 24V | 80-100 | 0.66 (A) | 16W | 1737 g |

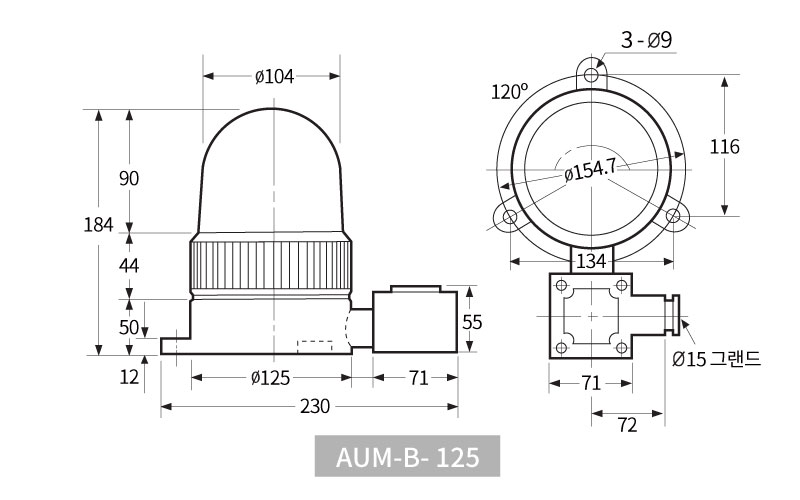

Product outline drawing
AUM-A-R150
Outer diameter
150mm outer diameter ship heavy equipment light bulb reflector rotating beacon
Single reflector (normal) / double reflector (high brightness) 2 types
Rotation speed
90 ~ 100
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.18 (A) | 12V 15W | 2974 g |
| AC 220V | 0.09 (A) | 12V 15W | 2974 g |
| DC 12V | 1.4 (A) | 12V 15W | 2407 g |
| DC 24V | 0.7 (A) | 24V 15W | 2407 g |
| DC 48V | 0.38 (A) | 48V 15W | 2452 g |
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.3 (A) | 12V 35W | 3000 g |
| AC 220V | 0.18 (A) | 12V 35W | 3000 g |
| DC 12V | 3 (A) | 12V 35W | 2433 g |
| DC 24V | 1.5 (A) | 24V 35W | 2433 g |
AUM-A-L150 multifunctional LED warning light
Outer diameter
150mm outer diameter multifunctional LED warning light for heavy vessels
LED brightness standard type and high brightness 2 types
Number of rotations
arbitrary adjustment
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.03 (A) | 54EA | 2150 g |
| AC 220V | 0.06 (A) | 54EA | 2150 g |
| DC 12V | 0.11 (A) | 54EA | 1858 g |
| DC 24V | 0.23 (A) | 54EA | 1866 g |
| DC 48V | 0.38 (A) | 54EA | 1881 g |
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.05 (A) | 90EA | 2170 g |
| AC 220V | 0.1 (A) | 90EA | 2170 g |
| DC 12V | 0.19 (A) | 90EA | 1878 g |
| DC 24V | 0.38 (A) | 90EA | 1866 g |
| DC 48V | 0.66 (A) | 90EA | 1901 g |
AUM-A-X150 xenon lamp flash (strobe), etc.
Outer diameter
150mm outer diameter xenon lamp flash (strobe) for heavy equipment
Number of flashes
80 ~ 100
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Flash | Current consumption | XENON | Weight |
|---|---|---|---|---|
| AC 110V | 80-100 | 0.23 (A) | 16W | 2193 g |
| AC 220V | 80-100 | 0.19 (A) | 16W | 2173 g |
| DC 12V | 80-100 | 1.28 (A) | 16W | 2216 g |
| DC 24V | 80-100 | 0.66 (A) | 16W | 2216 g |

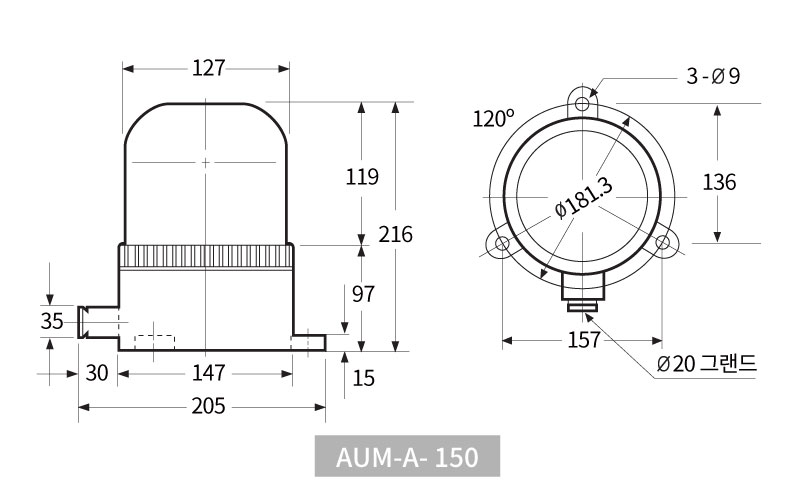

Product outline drawing
AUM-B-R150
Outer diameter
150mm outer diameter ship heavy equipment light bulb reflector rotating beacon
Rotation speed
90 ~ 100
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.18 (A) | 12V 15W | 3206 g |
| AC 220V | 0.09 (A) | 12V 15W | 3206 g |
| DC 12V | 1.4 (A) | 12V 15W | 2640 g |
| DC 24V | 0.7 (A) | 24V 15W | 2640 g |
| DC 48V | 0.38 (A) | 48V 15W | 2648 g |
| Rated voltage | Current consumption | Light bulb specification | Weight |
|---|---|---|---|
| AC 110V | 0.3 (A) | 12V 35W | 3232 g |
| AC 220V | 0.18 (A) | 12V 35W | 3232 g |
| DC 12V | 3 (A) | 12V 35W | 2666 g |
| DC 24V | 1.5 (A) | 24V 35W | 2666 g |
AUM-B-L150 multifunctional LED warning light
Outer diameter
150mm outer diameter multifunctional LED warning light for heavy vessels
LED brightness standard type and high brightness 2 types
Number of rotations
arbitrary adjustment
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.03 (A) | 54EA | 2902 g |
| AC 220V | 0.06 (A) | 54EA | 2902 g |
| DC 12V | 0.11 (A) | 54EA | 2610 g |
| DC 24V | 0.23 (A) | 54EA | 2618 g |
| DC 48V | 0.38 (A) | 54EA | 2633 g |
| Rated voltage | Current consumption | LED EA | Weight |
|---|---|---|---|
| AC 110V | 0.05 (A) | 90EA | 2922 g |
| AC 220V | 0.1 (A) | 90EA | 2922 g |
| DC 12V | 0.19 (A) | 90EA | 2630 g |
| DC 24V | 0.38 (A) | 90EA | 2638 g |
| DC 48V | 0.66 (A) | 90EA | 2653 g |
AUM-B-X125 xenon lamp flash (strobe), etc.
Outer diameter
150mm outer diameter xenon lamp flash (strobe) for heavy equipment
Number of flashes
80 ~ 100
Color
Red (R) Yellow (Y) Green (G) Blue (B)
Specifications
| Rated voltage | Flash | Current consumption | XENON | Weight |
|---|---|---|---|---|
| AC 110V | 80-100 | 0.23 (A) | 16W | 2637 g |
| AC 220V | 80-100 | 0.19 (A) | 16W | 2617 g |
| DC 12V | 80-100 | 1.28 (A) | 16W | 2660 g |
| DC 24V | 80-100 | 0.66 (A) | 16W | 2660 g |

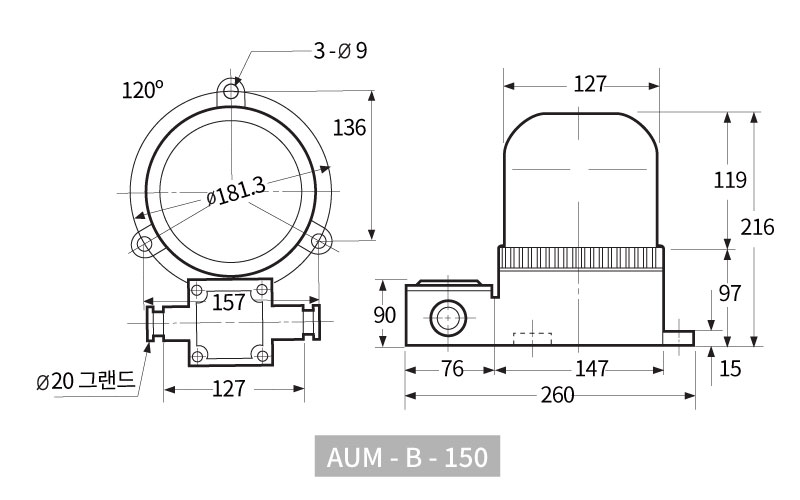

Product outline drawing
