Aluminium Profile LED Lamp
Power Supply Voltage
AC220V for both 50 & 60Hz (Allowable voltage variation range: 90~110%)
Electric energy consumption
3.5 W 이하
HIGH FLUX LED
(LT5050HBZ3.LW01)
NON-INSULATED STEP DOWN
-
CASING STRUCTURE
-
INTERNAL NOISE
±2000 R and S phrases and pulse width of less than or equal to 1㎲
AMBIENT TEMPERATURE
-10 ~ 60℃
AMBIENT HUMIDITY
35 ~ 85%RH
STORAGE TEMPERATURE
-20~ 65℃
PRODUCT COLOR
Silver & Black
* Six-Month Free Service After Sale (For an accidental damage cover, you will need to pay a little extra.)
Aluminium Profile LED Lamp Model
SG-LED-1S(B)
25 x 33 x 150mm
SG-LED-1S(B)
25 x 33 x 298mm
SG-LED-1S(B)
25 x 33 x 446mm

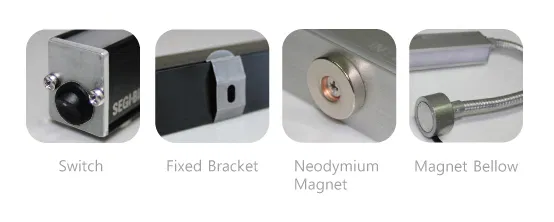

* Three types are offered as follows: Bracket (basic), Magnet, and Bellows. | * According to order specification the length can increase on a 148mm basis by 4m. | * Comparing with real Product dimension, there may be minute gap.
LED Lamp SG-LED1C-01
Aluminum Profile Rechargeable
Case Size (Width)
25mm
Case Size (Height)
Height 33mm
Case Size (Magnet)
Magnet 5mm
Case Size (Length)
Length 153mm
Weight
180g
Brightness
1m: 63 lux /0.5m: 190 lux
Magnet
Neodymium Magnet
Battery Specification
18650A 3.7V 2600mAh Lithium ion battery
Input Voltage
Normal 3.7V / MAX 4.2V
Standard Discharge
2.75V
Protection Circuit
lncluding over-charge, over-discharge circuit
Operating Temperature
-20℃~ 60℃
Recharging
Perfect Charging Time 3hr /Continuous Operation Time 5hr
* SG-LED2C-02 or SG-LED3C-02 is also possible to make depending on the purchase order specifications. The length could be slightly different from that of real products. | * Comparing with real Product dimension, there may be minute gap.
