Nfb pd terminal block type
PD NFB Terminal Block Type

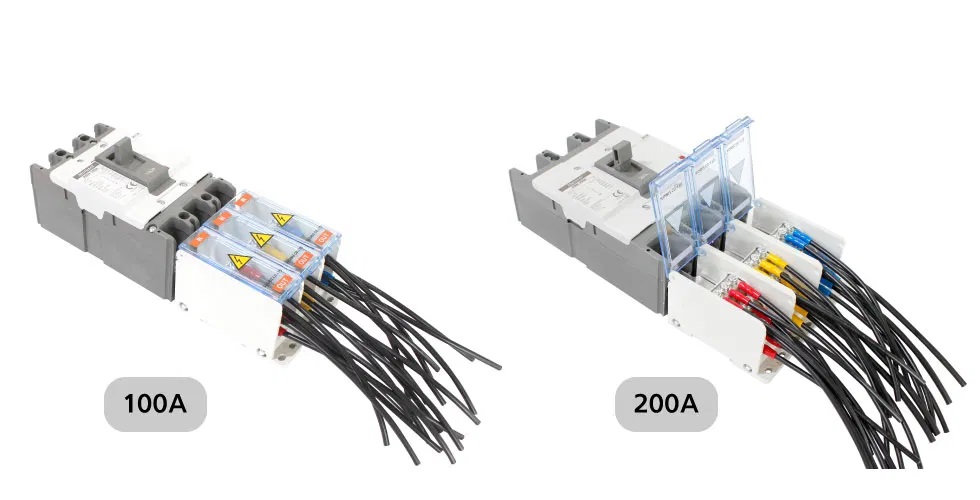

NFB Power Distribution Terminal is released for use by attaching it directly to the breaker.

NFB Power Distribution Terminal Block Type

Diagram NFB Power Distribution Terminal Block Type

Material
NFB Power Distribution Terminal Block Type
Body

Modified PPO

Cover

Polycarbonate

Busbar

Copper 99.9% /Tin-Plated

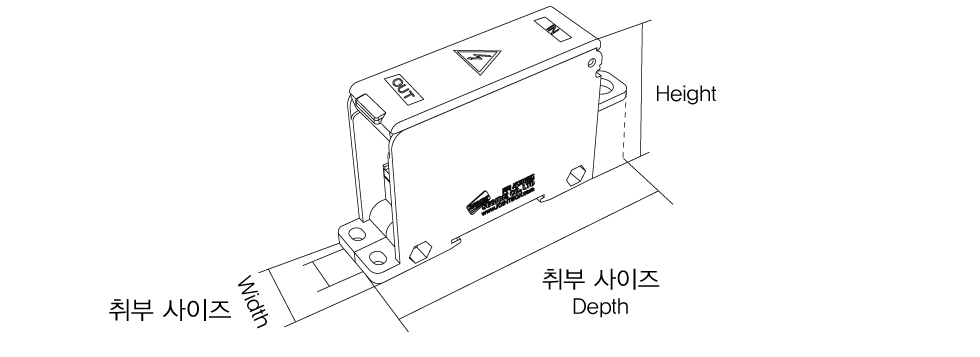

NFB Power Distribution Terminal Block Type Diagram

Diagram NFB Power Distribution Terminal Block Type

Model
NFB PD Terminal Block Type SG-NPD-100-4P
Rated Capacity

600v100A

Pitch

20mm

Terminal Screw (In Hole)

Φ9

Terminal Screw (Out)

M4 x 2

M5 x 2

Product SizeW x D x H (mm)

24 x 105 x 58

Mounting Size/Hole Size

12.4mm / Φ4.5

Busbar (width)

20mm

Busbar (thickness)

3T

Weight

111g

NFB PD Terminal Block Type SG-NPD-100-6P
Rated Capacity

600v100A

Pitch

20mm

Terminal Screw (In Hole)

Φ9

Terminal Screw (Out)

M4 x 6

Product SizeW x D x H (mm)

24 x 105 x 58

Mounting Size/Hole Size

12.4mm / Φ4.5

Busbar (width)

20mm

Busbar (thickness)

3T

Weight

111g

NFB PD Terminal Block Type SG-NPD-200-4P
Rated Capacity

600v200A

Pitch

30mm

Terminal Screw (In Hole)

Φ10

Terminal Screw (Out)

M5 x 2

M6 x 2

Product SizeW x D x H (mm)

34 x 113 x 58

Mounting Size/Hole Size

17.4mm / Φ4.5

Busbar (width)

30mm

Busbar (thickness)

3T

Weight

161g

NFB PD Terminal Block Type SG-NPD-200-6P
Rated Capacity

600v200A

Pitch

30mm

Terminal Screw (In Hole)

Φ10

Terminal Screw (Out)

M5 x 6

Product SizeW x D x H (mm)

34 x 113 x 58

Mounting Size/Hole Size

17.4mm / Φ4.5

Busbar (width)

30mm

Busbar (thickness)

3T

Weight

161g

NFB PD Terminal Block Type SG-NPD-200-8P
Rated Capacity

600v200A

Pitch

30mm

Terminal Screw (In Hole)

Φ10

Terminal Screw (Out)

M4 x 6

M5 x 2

Product SizeW x D x H (mm)

34 x 113 x 58

Mounting Size/Hole Size

17.4mm / Φ4.5

Busbar (width)

30mm

Busbar (thickness)

3T

Weight

161g
