Power Distribution
The Power Distribution simplifies applications where high voltage distribution is required, the Power Distribution blocks are ideal for high power distribution is smaller spaces. All products mount on a standard 35mm Din Rail, terminals are solid copper and screws are stainless steel.
Power Distribution Product List
Power Distribution SG-PD2L06-100A (Coming Soon)
Case Size
132 X 59 X 48
Busbar Size
3 X 15
Power Fixing Bolt Size
M6
Bolt Size
M5
Mounting Size / Tapped Hole
117 X 49 / Φ4.2
Weight
173g
Power Distribution SG-PD4L06-100A (Coming Soon)
Case Size
132 X 111 X 72
Busbar Size
3 X 15
Power Fixing Bolt Size
M6
Bolt Size
M5
Mounting Size / Tapped Hole
117 X 49 / Φ4.2
Weight
355g
Power Distribution SG-PD4L06-100A (Coming Soon)
Case Size
132 X 111 X 72
Busbar Size
3 X 15
Power Fixing Bolt Size
M6
Bolt Size
M5
Mounting Size / Tapped Hole
117 X 49 / Φ4.2
Weight
355g
Power Distribution SG-PD2L10-100A (New)
Product
New
Case Size
180 X 59 X 48
Busbar Size
3 X 15
Power Fixing Bolt Size
M6
Bolt Size
M5
Mounting Size / Tapped Hole
166 X 49 / Φ4.2
Weight
240g
Power Distribution SG-PD3L06-100A
Case Size
132 X 85 X 60
Busbar Size
3 X 15
Power Fixing Bolt Size
M6
Bolt Size
M5
Mounting Size / Tapped Hole
117 X 75 / Φ4.2
Weight
265g
Power Distribution SG-PD3L06-200A
Case Size
156 X 103 X 67
Busbar Size
4 X 20
Power Fixing Bolt Size
M8
Bolt Size
M6
Mounting Size / Tapped Hole
130 X 93 / Φ4.2
Weight
480g
Power Distribution SG-PD3L10-100A
Case Size
180 X 85 X 60
Busbar Size
3 X 15
Power Fixing Bolt Size
M6
Bolt Size
M5
Mounting Size / Tapped Hole
166 X 75 / Φ4.2
Weight
357g
Power Distribution SG-PD3L10-200A
Case Size
211 X 103 X 67
Busbar Size
4 X 20
Power Fixing Bolt Size
M8
Bolt Size
M6
Mounting Size / Tapped Hole
186 X 93 / Φ4.2
Weight
650g
Power Distribution SG-PD4L10-100A
Case Size
180 X 111 X 72
Busbar Size
3 X 15
Power Fixing Bolt Size
M6
Bolt Size
M5
Mounting Size / Tapped Hole
166 X 101 / Φ4.2
Weight
480g
Power Distribution SG-PD4L10-200A
Case Size
211 X 135 X 81
Busbar Size
4 X 20
Power Fixing Bolt Size
M8
Bolt Size
M6
Mounting Size / Tapped Hole
186 X 123 / Φ4.2
Weight
878g

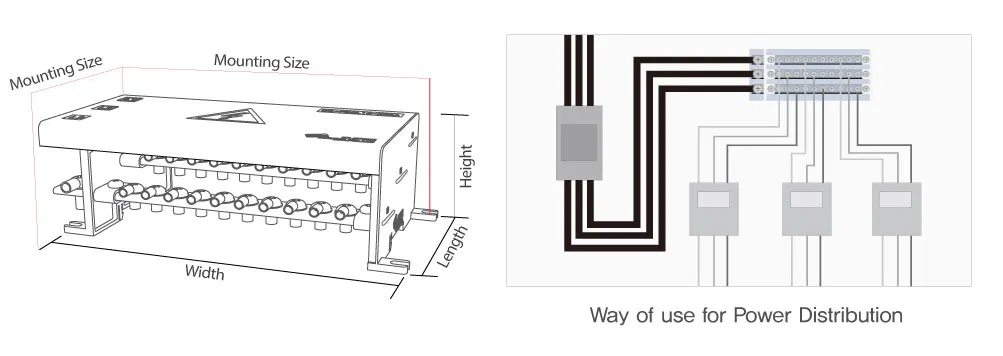

Power Distribution Diagram
* Din Rail Mountable. | * The direction of the busbar can be changed from side to side. | * Comparing with real Product dimension, there may be minute gap.
