Electronic Siren Signal Phone
Lightweight and sturdy electronic signal phone that can be used in various ways with various tones.
Electronic signal phone
Specification

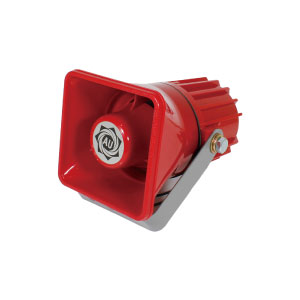

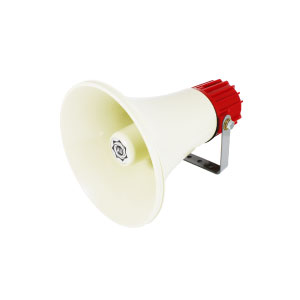

AUP-EWH electronic signal phone
Among 3 siren, 3 melody, and 3 buzzer sounds, it can be used according to the conditions of the operator.
The volume switch is attached to the device, so the volume can be easily adjusted.
The tone change switch is attached to the device, making it easy to change the tone.
Built to be lightweight and robust
Buzzer volume
Max. 115~125dB
Material
ABS resin
Ambient temperature
-25℃ ~ +50℃ (no freezing)
Product specification
Maximum output 25W / 35W (15W available as order specification)
It is 3 basic notes, and as a specification, up to 4 additional notes can be added to the melody and the piano sonata buzzer.
25W
| Built-in sound | Volume | Rated voltage & current consumption | Weight | |
|---|---|---|---|---|
| Alarm Sound | Basic (3 notes) | |||
| Siren AS | Emergency | 115dB | 0.113A for both AC110V/220V |
AC: 1174g
DC: 1122g |
| emergency | ||||
| fire | ||||
| Melody AM | My happy home | DC 12V: 2.21A | ||
| For Elysee | ||||
| Turkish march | DC 24V: 1.02A | |||
| Buzzer AB | Beep~beep~beep | |||
| Ding dong ding dong | DC 48V: 0.48A | |||
| Beep beep beep | ||||
35W
| Built-in sound | Volume | Rated voltage & current consumption | Weight | |
|---|---|---|---|---|
| Alarm Sound | Basic (3 notes) | |||
| Siren AS | Emergency | 125dB | 0.122A for AC110V/220V |
AC: 1431g
DC: 1379g |
| emergency | ||||
| fire | ||||
| Melody AM | My happy home | DC 12V: 2.44A | ||
| For Elysee | ||||
| Turkish march | DC 24V: 1.19A | |||
| Buzzer AB | Beep~beep~beep | |||
| Ding dong ding dong | DC 48V: 0.59A | |||
| Beep beep beep | ||||

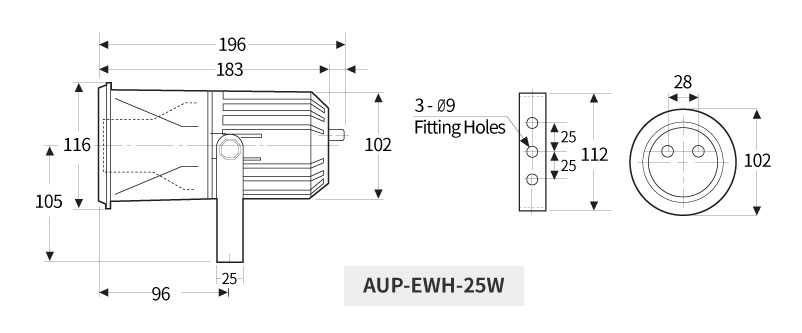

Appearance
