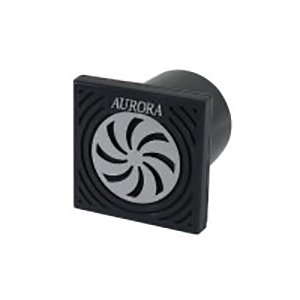

Panel embedded signal phone
A panel-embedded signal phone that outputs a small but clear, high-capacity sound
Panel embedded signal phone
Specification
AUP-B panel embedded signal phone
Small but high-capacity clean sound output
It is composed of 4 channels as buzzer and alarm for panel
User selectable tone according to channel selection
Sound is output in 8 chords, and the sound is clear and clear
The user can adjust 5 melodies and 7 buzzers according to the combination selection.
The user can adjust the sound combination through the DIP switch inside the product
Volume adjustable
Orange color products available as custom specifications
Buzzer volume
Max. 90dB
Material
ABS resin
Ambient temperature
-25℃ ~ +50℃ (no freezing)
Product specification

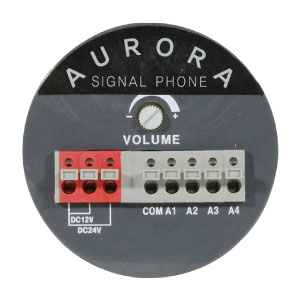

Dip switch inside the product and control of tone combinations with external channel terminals
When adjusting the volume, it can be adjusted by slightly turning it using a (-) screwdriver
| Rated voltage | Current consumption | weight |
|---|---|---|
| AC 110,220V combined | 0.5(A) | 272g |
| DC 12V | 1.2(A) | 184g |
| DC 24V | 1(A) | 184g |
| Built-in-sound | |||
|---|---|---|---|
| Alarm Sound | Channel | Basic One | Volume |
| Melody (AM) dip switch 2, 3, 4 on |
A1 | Turkish march | 90dB |
| A2 | Piano sonata | ||
| A3 | My happy home | ||
| A4 | For Elysee | ||
| Buzzer (AB) dip switch 1, 2 on |
A1 | Beep~beep~beep | |
| A2 | Ding Dong | ||
| A3 | Beep | ||
| A4 | Beep beep beep | ||
Tone Specification Table
Changeable by adjusting DIP switch and input pin channel according to user's selection
| DIP/SW adjustment | Input pin | |||
|---|---|---|---|---|
| A1 | A2 | A3 | A4 | |
|
|
Ding dong dang |
Piano sonata |
Magic flute |
My happy home |
|
|
Ding Dong |
Phone ring |
Beep beep |
Ding dong dang |
|
|
Magic flute |
Piano sonata |
For Elysee |
Phone ring |
|
|
Piano sonata |
Turkish march |
My happy home |
Magic flute |
|
|
For Elysee |
Turkish march |
My happy home |
Beep beep beep |
|
|
For Elysee |
Turkish march |
My happy home |
Beep beep beep |
|
|
Beep~beep~beep |
Ding Dong |
Beep |
Beep beep beep |
|
|
Magic flute |
For Elysee |
Turkish march |
My happy home |
|
|
Magic flute |
My happy home |
Phone ring |
Ding dong dang |
|
|
Magic flute |
Turkish march |
Piano sonata |
Beep beep beep |
|
|
My happy home |
Magic flute |
Turkish march |
Ding Dong |
|
|
Magic flute |
My happy home |
Ding Dong |
Phone ring |
|
|
For Elysee |
My happy home |
Magic flute |
Piano sonata |
|
|
Magic flute |
Piano sonata |
My happy home |
Ding dong dang |
|
|
Turkish march |
Piano sonata |
My happy home |
For Elysee |
|
|
Piano sonata |
Magic flute |
For Elysee |
Turkish march |

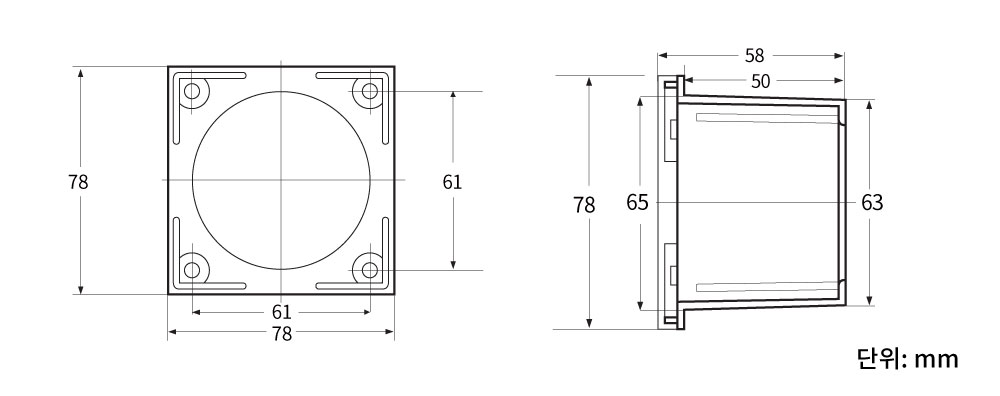

Appearance
Circuit Diagram

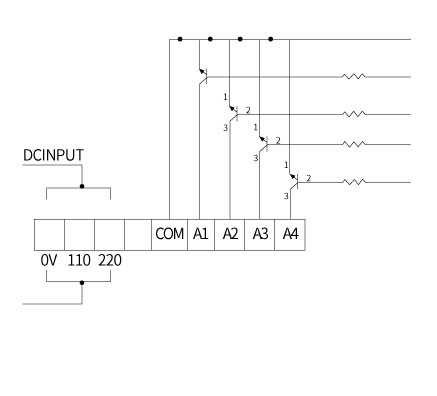

How to use TR and SSR

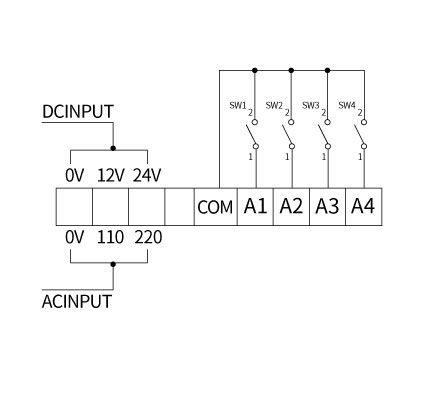

Connection method circuit
