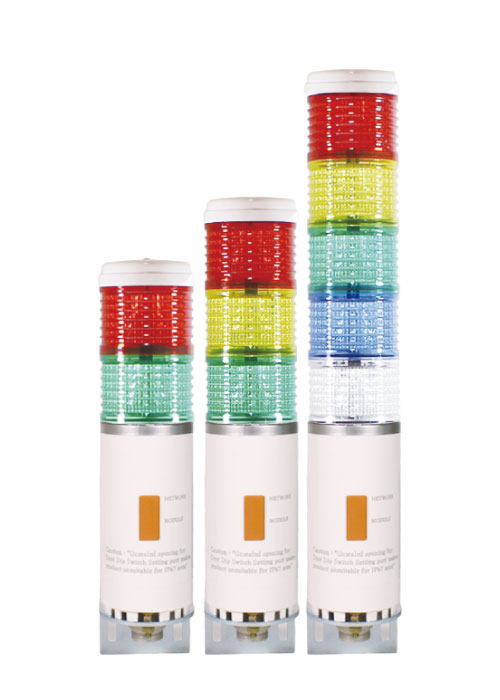

Devicenet Signal Tower Lamp
It is convenient for installation and maintenance by connecting directly to the network without a separate devicenet dedicated l/O terminal, saving installation space and reducing the number of wires.
Devicenet Signal Tower Lamp
Specification
Devicenet dedicated signal tower lamp
Direct connection to the network without a separate devicenet dedicated I/O terminal
Convenient installation and maintenance by saving installation space and reducing the number of wires
Controlled by DeviceNet master of PLC
Address (MAC ID) and communication speed are set with the built-in Dip Switch.
Supports all communication speeds (125kbps, 250kbps, 500kbps) on DeviceNet, and supports automatic speed setting function for convenience
Buzzer maximum volume
90dB
Outer diameter
Φ58
Material (LENS )
GPPS
Material (Body )
ABS
Material (Reflector)
PC
Material (Pole)
Aluminum
Ambient temperature
-25℃ ~ +50℃ (no freezing)
Product Specification
AUT-EN
Outer diameter
Φ58 Ethernet signal tower
Tone
Built-in basic buzzer
ON-type
DC24V only
Color Step 1
(Step 1) Red (R)
Color Step 2
(Step 1) Red (R) (Step 2) Green (G)
3rd stage
(Step 1) Red (R) (Step 2) Yellow (Y) (Step 3) Green (G)
Step 4
(Step 1) Red (R) (Step 2) Yellow (Y) (Step 3) Green (G) (Step 4) Blue (B)
Step 4
(Step 1) Red (R) (Step 2) Yellow (Y) (Step 3) Green (G) (Step 4) Blue (B) (Step 5) Blue (W)
Color shiftable by column
Mounting using a dedicated bracket
AUT-U USB Signal Tower
| Model | Singular | Voltage | Product height | Weight(g) |
|---|---|---|---|---|
| DeviceNet AUT-DN | 1st stage ((R) ) | DC 24V | 210.5mm | 368g |
| 2nd stage ((R) ,(G) ) | 252mm | 405g | ||
| 3rd stage ((R) ,(Y) ,(G) ) | 293.5mm | 442g | ||
| 4th stage ((R) ,(Y) ,(G) ,(B) ) | 335mm | 479g | ||
| 5 levels ((R) ,(Y) ,(G) ,(B) , (W) ) | 379.5mm | 516g |
What is Device Net?

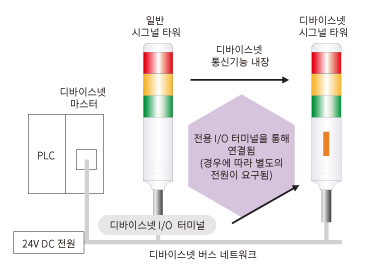

Advantages of device-dedicated signal tower
Connected directly to the network built in the DeviceNet communication function (power supply lines and signal lines are integrated into a single cable)
Space saving
Reduced number of wiring
Convenient installation and maintenance
Device Net is a field bus that facilitates interconnection between PLCs, PCs, sensors, and actuators.
By reducing the wiring cost by the good wiring, errors caused by wiring are reduced, maintenance is easy and can be used for real-time control.
Based on CAN, it is strong against noise.
By allowing interconnection between devices from different vendors, more economical system construction is realized.
Connected devices can be removed from the network without stopping the entire network.
As an open field bus, it is used for a wide range of applications.
