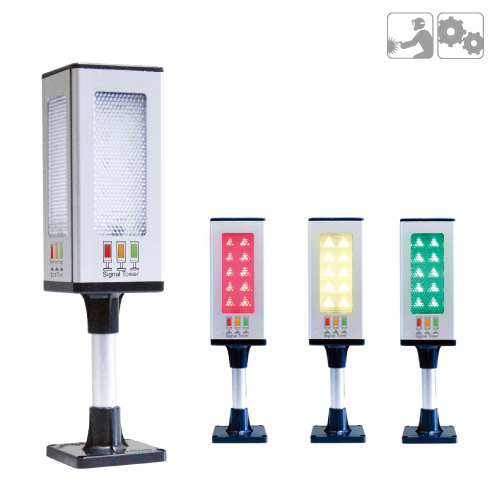

Square Profile Signal Tower Lamp
The signal lamp is made of aluminum profile and equipped with a system that changes the color of the LED itself without a separate stage.
Square Profile Signal Tower Lamp
Specification
LED lighting/flashing square signal tower lamp
Made of aluminum profile.
Built-in buzzer is possible
Signals are displayed by changing the color of the LED itself without stage.
Outer diameter
70 X 70
Basic type
Braguet type
Material Lens
Polycarbonate
Body
Aluminum Profile
Bracket
ABS Flame Retardant
Pole
Aluminum
Ambient temperature
-20℃ ~ +70℃
Product SIZE (mm)
70 x 70mm
Product Name
Signal Tower
LED lamp color
3 Color (R,Y,G)
Input voltage
AC 100 ~ 240V / DC 24V
Display operation
ON: lit type / OF flashing type
Product Specification
Signal Tower is a product that is installed on the machine or on the job site to notify the machine's status or danger by color and buzzer sound. Unlike conventional tower lamps that send signals to the working environment with the color of the lens, it uses a system that changes the color of the LED itself, allowing users to intuitively and reliably recognize signals.
Outer diameter 70 X 70 LED lighting/flashing signal tower
Tone
buzzer sound possible
Lens color
transparent
LED Color
Red (R) Yellow (Y) Green (G)
LED color can be changed according to the user's working environment, and it is possible to configure by selecting the wiring method of lighting and blinking buzzer.

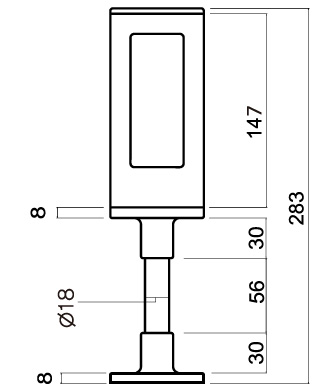

Size(mm)
W 70mm x L 70mm x H 283mm(mA)
Mounting Size(mm)
60.8mm x 60.8mm
Mounting hole
Φ4.5
Rated voltage
AC100~240V / DC24V
Power Consumption
16W
Buzzer volume
Max. 86dB at 1m
Mounting type
Basic bracket / nut type
Mounting Table

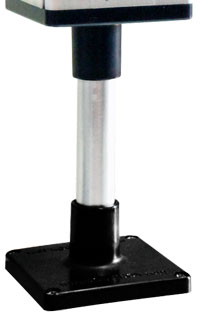

Braguet type

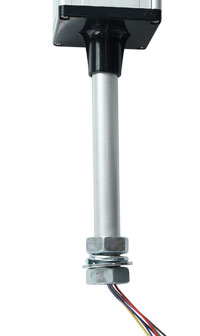

Nut type
