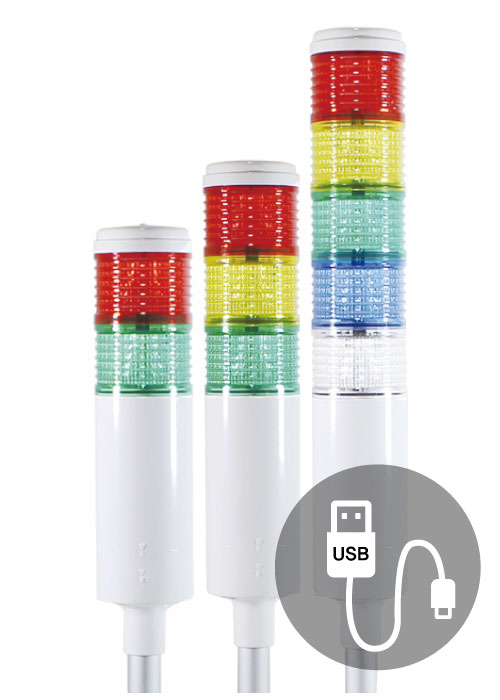

USB Signal Tower Lamp
Signal tower connected to the USB port and controlled by program on a PC, all signals and power are supplied together through a single USB cable
USB Signal Tower Lamp
Specification
USB Signal Tower Lamp
Signal tower program-controlled by connecting to a USB port
All signals and power are supplied together through a single USB cable
Usable on hosts that support USB 1.1 or higher
As a peripheral device of general PC, it can be used for various purposes
Mounting rod (length, type) selectable
Buzzer maximum volume
90dB
Outer diameter
Φ58 / Basic type mounting: horizontal bar (SH200) 200mm
Material (LENS )
GPPS
Material (Body )
ABS
Material (Reflector)
PC
Ambient temperature
-25℃ ~ +50℃ (no freezing)
Product Specification
AUT-U
Outer diameter
Φ58 Ethernet signal tower
Tone
Built-in basic buzzer
Voltage
DC 5V
Color Step 1
(Step 1) Red (R)
Color Step 2
(Step 1) Red (R) (Step 2) Green (G)
3rd stage
(Step 1) Red (R) (Step 2) Yellow (Y) (Step 3) Green (G)
Step 4
(Step 1) Red (R) (Step 2) Yellow (Y) (Step 3) Green (G) (Step 4) Blue (B)
Step 4
(Step 1) Red (R) (Step 2) Yellow (Y) (Step 3) Green (G) (Step 4) Blue (B) (Step 5) Blue (W)
Color shiftable by column
AUT-U USB Signal Tower
| Model | Singular | Voltage | Product height | Weight(g) |
|---|---|---|---|---|
| AUT-U | 1st stage ((R) ) | DC 5V | 410mm | 380g |
| 2nd stage ((R) ,(G) ) | 451.5mm | 419g | ||
| 3rd stage ((R) ,(Y) ,(G) ) | 493mm | 458g | ||
| 4th stage ((R) ,(Y) ,(G) ,(B) ) | 534.5mm | 497g | ||
| 5 levels ((R) ,(Y) ,(G) ,(B) , (W) ) | 576mm | 536g |
The height of the product is based on the standard horizontal bar (SH200).
Mounting Table
Horizontal bar (SH)
Rod length : 200mm (SH20) Rod length: 80mm (SH08) Rod length: 40mm (SH04)
Vertical bar (SV)
Rod length : 200mm (SV20) Rod length: 60mm (SV06)
Direct connection type (G)

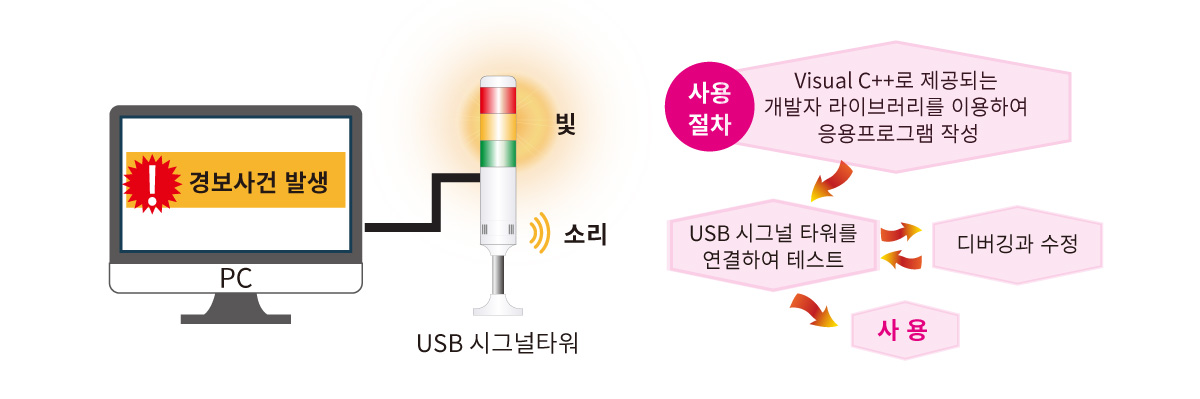

Purpose
Used to inform the processing status of the computer
In case of notifying the alarm signal to many distant people without going through the monitor
In all cases where the alarm message output is controlled on the computer
